Your ship’s coupling has damaged bolt holes, a critical issue. The thought of dismantling that massive coupling and hauling it to a workshop is daunting. It means long downtimes and high costs, but ignoring it risks serious power system failure.

Ship coupling bolt holes can be accurately restored on-site using a specialized portable Inclined Hole and Internal Cavity Drilling & Reaming Machine. This avoids costly disassembly and transport, quickly bringing the coupling back to operational standards, often minimizing downtime significantly.

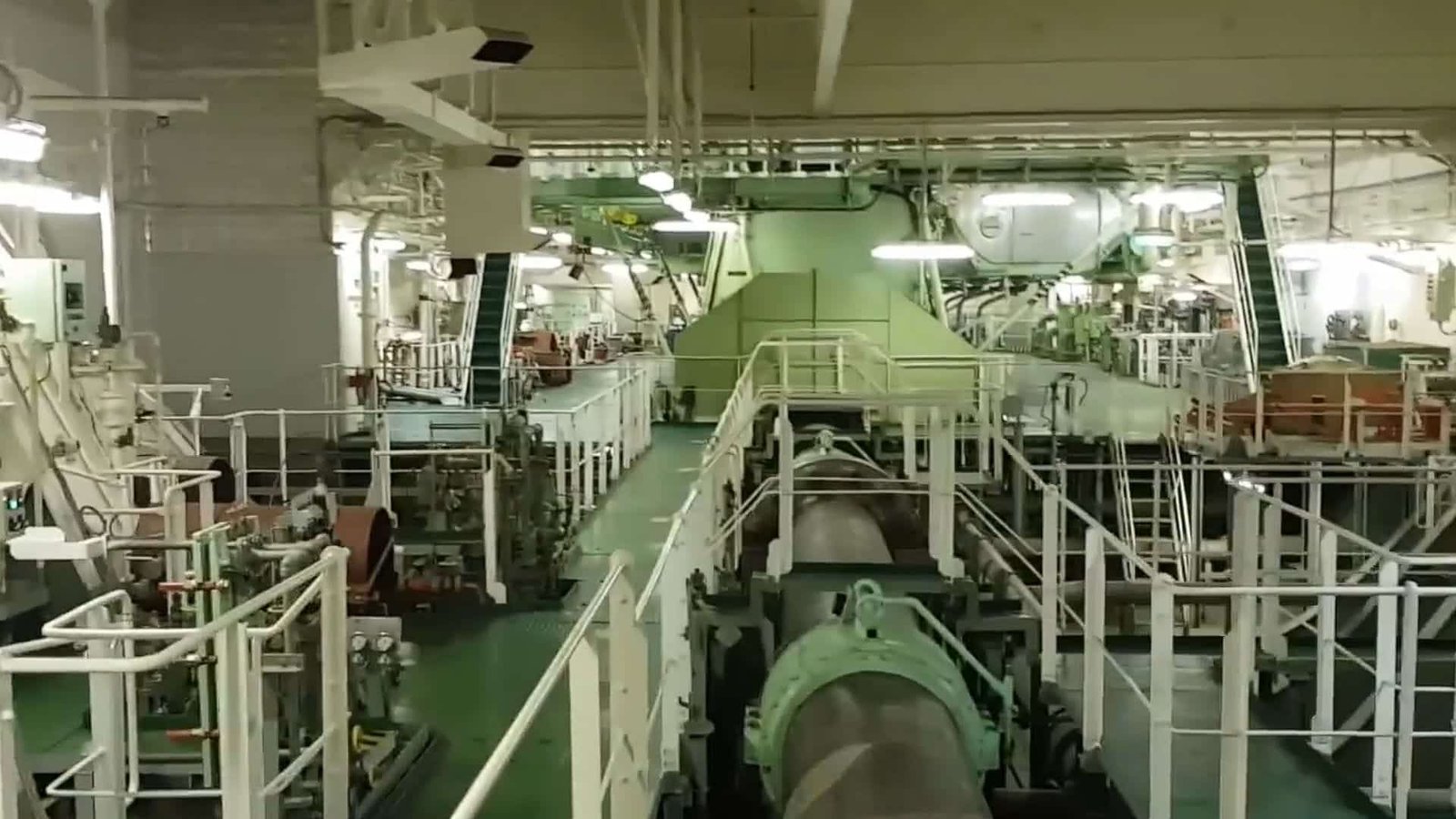

I’ve seen it happen – those coupling bolt holes on a ship’s propeller shaft system take a beating. After transmitting huge amounts of torque for years, or even during disassembly and assembly, the holes can get scored, deformed, or become slightly oval. This really messes with the bolt tightening and how efficiently power is transmitted. These bolts need to fit precisely, often relying on friction and the bolt shank for proper torque transmission. In the past, the only option was a massive undertaking: remove the coupling, send it off, wait, and then reinstall. But now, there are some really smart solutions for handling this right where the ship is docked. This is where specialized portable machinery comes into its own, sometimes allowing for worn holes to be enlarged and fitted with new, custom-sized bolts, all on-site.

What Is an Inclined Hole and Internal Cavity Drilling & Reaming Machine?

You’re faced with fixing a hole that’s not straight, or one tucked away deep inside a component. Traditional workshop drill presses or boring mills are useless here, especially on-site. How do you even begin to tackle such an awkward machining task accurately?

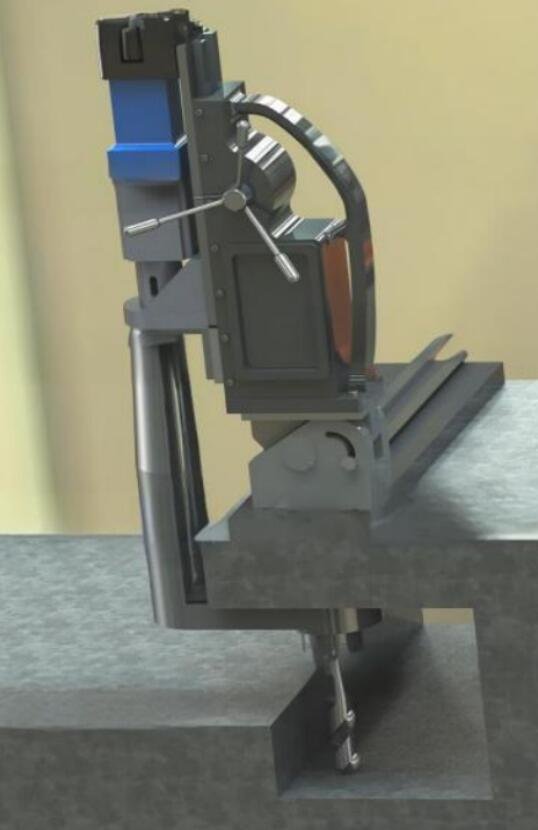

An Inclined Hole and Internal Cavity Drilling & Reaming Machine is a portable, versatile tool designed for precision drilling and reaming of holes at various angles and in confined spaces, directly on large, immovable equipment. It’s built for heavy-duty work, often in steel, at any angular direction.

Let me break down what makes these machines so special. Imagine a machine tool that you can take directly to the job, no matter how big or awkward the workpiece is. That’s the core idea. Specifically for these tasks, it’s designed for drilling inclined holes and also for drilling and reaming inside narrow internal cavities. I’ve seen specifications for different models that can handle a good range of diameters, say from Φ30mm up to Φ125mm. A key feature for inclined holes is that the spindle head can often be rotated, for example, 45 degrees to the left and right, with some universal drilling machines offering full 360° rotation and 90° up/down swivel. This gives you that crucial angular capability. Another really practical design point is a sealed lubrication system¹, which is part of my initial insights. This means you can mount the machine in almost any orientation – horizontally, vertically, or even upside down. Despite being portable, they pack a punch with high horsepower but are built with a lightweight structure for easier installation. They usually feature stepless speed regulation², maintaining constant torque for high cutting force. I’ve been told these can achieve a single-sided feed rate of over 5mm, and the surface roughness you can get is impressive, often Ra1.6 or even better. Motorized movements for adjustments like arm up/down or head tilting also make them easier to use on-site.

What Kinds of Machining Tasks Can An Inclined Hole and Internal Cavity Drilling & Reaming Machine Handle On-Site?

Big equipment breaks down or wears out in the field, far from any workshop. You need to repair critical components like pin holes or flange connections accurately. Dragging the whole assembly to a machine shop is often impossible or incredibly expensive.

This type of machine excels at on-site precision repair of damaged or worn holes. This includes drilling, reaming, tapping, and sometimes even boring or light milling operations on large, fixed structures where precision is key.

The primary job that got me interested in these machines is repairing those ship coupling bolt holes. As I mentioned, these holes are prone to damage. Using an Inclined Hole and Internal Cavity Drilling & Reaming Machine on-site completely changes the game. You don’t need to remove that bulky, heavy coupling. Instead, the machine is brought to the coupling for quick repair, ensuring power system reliability and shortening maintenance time. Beyond just reaming existing holes, these machines can be used for line boring³ to enlarge worn holes to an oversized diameter, allowing for new, perfectly fitting bolts to be installed. This is critical for restoring the integrity of the connection. The versatility extends to tapping operations⁴ as well, for creating new threads where needed. Essentially, any task that requires precise hole creation or restoration on a component too large or integrated to move can be a candidate for these machines.

What Level of Accuracy and Surface Quality Can Be Consistently Achieved by Reaming Inclined Holes and Internal Cavities with This Specialized Machine?

You’re repairing a critical part on-site. You can’t afford for the repaired hole to be out of tolerance or have a poor finish. But achieving workshop quality in the field seems like a big ask.

These specialized machines can consistently achieve high levels of accuracy, often with tolerances between 0.001 to 0.005 inches (0.025 to 0.127 mm), and excellent surface quality, often reaching a surface roughness of Ra1.6 (around 16 microinches) or better.

Achieving a good surface finish⁵, like Ra1.6 or even smoother, is a standard expectation. This isn’t just rough drilling; we’re talking precision reaming⁶ that meets engineering needs. Several features contribute. Stepless speed regulation with constant torque ensures a consistent cutting force, crucial for a smooth, accurate cut. The rigidity of the machine, even portable models, combined with precise feed mechanisms, ensures the reamer follows the intended path accurately. The quality of the tooling and the skill of the operator, of course, also play significant roles. Using cutting oil or coolant⁷ during reaming can further enhance tool life and the final surface finish. For ship repairs, this precision is vital to meet classification society standards, ensuring the repaired components are safe and reliable.

What Industries Are Inclined Hole and Internal Cavity Drilling & Reaming Machine Most Commonly Applied In?

When you have a portable machine that can make precise holes at odd angles or in tight spots, many industries would find it useful. It’s not just about ships.

Besides marine, these machines are common in heavy construction machinery, mining, power generation (including wind and turbines), petrochemical, aerospace, and general heavy manufacturing where on-site precision hole machining is essential.

While my main focus has been on their use in ship repair, these versatile machines are workhorses in several other demanding industries:

• Marine Industry: Repairing coupling bolt holes, rudder stocks, stern tube bearings.
• Heavy Construction Machinery: Repairing pin holes in excavator booms, loaders (as per my initial insights).
• Mining Equipment: Repairing fixed holes for large vibrating screen spring seats, and other heavy-duty components.
• Power Generation: On-site machining of turbine shafts, generator parts, and correcting flange connection bolt holes in wind turbine towers.
• Petrochemical Industry: Repairing bridge tube holes in heat exchanger tube sheets, and other process equipment.
• Aerospace: Machining large aircraft components or structural parts that are difficult to move.
• General Heavy Manufacturing: For steel structures, boilers, containers, cement plant furnaces, and other large-scale fabrications.

Any industry dealing with large, heavy equipment that’s difficult or costly to move can benefit from this on-site machining capability, reducing downtime and logistical headaches.

Conclusion

Restoring ship coupling bolt holes or other critical bores accurately without workshop transport is now very achievable. Specialized portable drilling and reaming machines bring precision, speed, and cost savings directly to the site, minimizing downtime across many industries.

---
