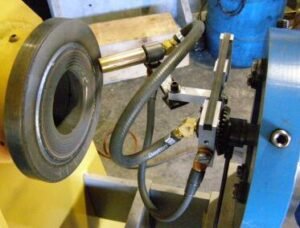

Boring and Welding Machine
Compact dual-purpose machine for automated inner bore welding and machining. Features welding and machining spindles, precision components, and robust structure for high rigidity and durability. Supports horizontal or vertical installation. Achieves deep cuts up to 3mm with high machining accuracy (Ra1.6).
其他信息
Product Details
Versatile Welding and Boring Machine for automatic inner bore welding and machining. Features welding spindle, machining spindle, bearing supports, rotary drive unit, axial drive unit, interface unit, welding machine, wire feeder, control system, CO2 and argon gas supply, and connecting lines. Enables automatic welding and subsequent boring of different diameter inner bores. Lightweight, adaptable for horizontal or vertical inversion. Boring bar made from tempered alloy steel, surface hardened, chrome-plated for high strength and wear resistance. Copper-worm gear spindle box ensures rigidity and durability. High-precision components ensure stability, durability, and dynamic responsiveness. Compact, lightweight, high rigidity, and precision structure. Powerful motor with constant torque stepless speed regulation. Capable of deep cuts up to 3mm and achieving high machining accuracy with surface roughness up to Ra1.6.
XCTM Series Heavy-Duty Portable Line Boring Machine Specifications
| Type | Boring Bar Diameter (φmm) | Boring Bar Length (mm) | Max Machinable Diameter (φmm) | Axial Travel (mm) | Boring Bar Max Speed (rpm) | Feeding Rate (mm/r) | Boring Bar Max Torque (Nm) |
|---|---|---|---|---|---|---|---|
| XCTMS65 | 60 | 1800 | 600 | 500 | 80 | 0.01–0.48 (Stepless speed control) | 320 |
| XCTMS96 | 90 | 2000 | 900 | 600 | 80 | 370 | |
| XCTMH128 | 125 | 2000 | 600 | 800 | 70 | 480 | |
| XCTMH1512 | 150 | 2500 | 900 | 1200 | 60 | 1230 | |
| XCTMH1815 | 180 | 3000 | 1250 | 1500 | 50 | 1480 |
