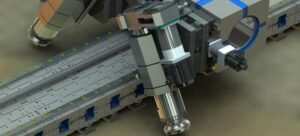

Double Bevel Milling Machine
Portable milling machine for steel, copper, stainless steel flat machining. Simultaneously mills inclined long flats up to 60°. Modular design, linear industrial guides ensure rigidity. High-precision components, compact, high-rigidity structure, powerful motor for constant torque. Handles deep cuts up to 5mm, achieves Ra1.6 surface roughness in precision machining.
Product Details
Portable milling machine for flat machining of steel, copper, stainless steel. Simultaneously mills inclined long flat surfaces with adjustable angles up to 60°. Features modular design for easy installation, linear industrial guides for rigidity, high-precision components for stability and durability. Compact, high-rigidity, high-precision structure with powerful motor for constant torque between speeds. Capable of deep cuts up to 5mm and achieves Ra1.6 surface roughness in precision machining.
| Type | Machining Width (mm) | Machining Length (mm) | Bevel Angle | Spindle Max Speed (rpm) | Feeding Rate (mm/r) | Main Motor Power (kW) |
|---|---|---|---|---|---|---|
| XCXI330 | 300 | 3000 | 0–60° | 500 (Stepless speed control) | 0.01–250 (Stepless speed control) | 5 |
| XCXI440 | 400 | 4000 | 0–60° | 500 (Stepless speed control) | 0.01–250 (Stepless speed control) | 5 |
| XCXI550 | 500 | 5000 | 0–60° | 500 (Stepless speed control) | 0.01–250 (Stepless speed control) | 5 |
| XCXI660 | 600 | 6000 | 0–60° | 500 (Stepless speed control) | 0.01–250 (Stepless speed control) | 5 |
| XCXI880 | 800 | 8000 | 0–60° | 500 (Stepless speed control) | 0.01–250 (Stepless speed control) | 5 |
