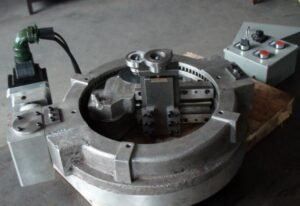

External Mount-Flange Lathe
Portable Machine Tools
Versatile on-site lathe for steel, copper, stainless flanges. Machines flats, bores, bosses, grooves. 45° adjustable tool holder, modular design, dovetail/linear guides, heavy-duty bearings. High-precision actuators, flexible 4/8-jaw installation, high rigidity, power, accuracy, Ra3.2 finish.
其他信息
Product Details
- Versatile Material Compatibility: Suitable for on-site repair turning of steel, copper, and stainless steel flanges.
- Comprehensive Machining Capabilities: Ideal for machining flat surfaces, inner bores, bosses, sealing grooves, V-grooves, and chamfers.
- Adjustable Tool Holder: Can rotate 45° left or right for enhanced versatility.
- Modular Design: Adapts to horizontal, vertical, or inverted installations based on on-site conditions.
- Dovetail or Linear Guide Rails: Ensures rigidity during machining.
- Heavy-Duty No-Play Bearings: Ensures smooth and vibration-free operation.
- High-Precision Actuators: Offers excellent stability, durability, and dynamic responsiveness.

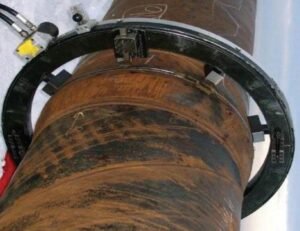

- Flexible Installation: Secured with 4-jaw or 8-jaw external chucks for quick and easy adjustments.
- High Rigidity and Precision: Features a compact structure with high power and stepless variable speed with constant torque across all speeds.
- High Cutting Force and Accuracy: Capable of deep cuts up to 5mm during rough machining; achieves a surface roughness of Ra3.2 during finish machining.
| Type | Machining Diameter Range (φmm) | Radial Max Travel (mm) | Max Axial Travel (mm) | Spindle Max Speed (rpm) | Feeding Rate (mm/r) | Main Motor Power (kW) |
|---|---|---|---|---|---|---|
| XCCA21 | 0-200 | 110 | 40 | 120 | 0.13-0.5 | 2 |
| XCCA31 | 0-300 | 160 | 50 | 95 | 0.13-0.5 | 2 |
| XCCA52 | 0-500 | 260 | 60 | 82 | 0.13-0.5 | 3 |
| XCCA84 | 0-800 | 410 | 80 | 50 | 0.13-0.5 | 5 |
| XCCA105 | 0-1000 | 510 | 100 | 40 | 0.13-0.5 | 5 |
| XCCA157 | 0-1500 | 760 | 120 | 27 | 0.13-0.5 | 5 |
