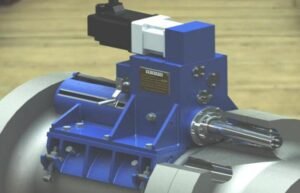

Flange Taper Hole Boring Machine
Portable Machine Tools
Versatile taper boring, high-strength alloy bar, precision linear guide rail, quality actuators, compact, lightweight, high rigidity, stepless speed, constant torque, deep 3mm cuts, high precision finish, Ra1.6 surface roughness.
其他信息
Product Details
- Versatile Taper Boring: Customizable tapers at any position
- High-Strength Boring Bar: Made from tempered alloy steel with surface hardening and chrome plating
- Precision Linear Guide Rail: Ensures high accuracy and rigidity
- High-Quality Actuators: Offer excellent stability, durability, and dynamic responsiveness
- Compact and Lightweight: Features high rigidity and precision
- Powerful Performance: Stepless speed adjustment with constant torque across all speeds
- High Cutting Force: Deep cuts up to 3mm during rough machining
- High Precision Finish: Achieves surface roughness of Ra1.6 during finish machining
XCJT Series Portable Line Boring Machine Specifications
| Type | Boring Bar Diameter (φmm) | Bore Diameter (φmm) | Max Tool Axial Travel (mm) | Machinable Depth (mm) | Max Boring Bar Speed (rpm) | Tool Axial Feeding Rate (mm/r) | Boring Bar Max Torque (Nm) |
|---|---|---|---|---|---|---|---|
| XCJT320 | 30 | 35–60 | 200 | 180 | 450 | Three Gears Optional: 0.06 / 0.15 / 0.27 | 36 |
| XCJT422 | 40 | 45–70 | 220 | 200 | 450 | 36 | |
| XCJT525 | 50 | 55–90 | 250 | 220 | 450 | 36 | |
| XCJT630 | 60 | 65–100 | 300 | 280 | 400 | 41 | |
| XCJT735 | 70 | 75–115 | 350 | 320 | 400 | 41 | |
| XCJT845 | 80 | 85–140 | 450 | 400 | 400 | 41 | |
| XCJT1055 | 100 | 105–180 | 550 | 500 | 300 | 81 | |
| XCJT1580 | 150 | 155–250 | 800 | 700 | 200 | 120 |
