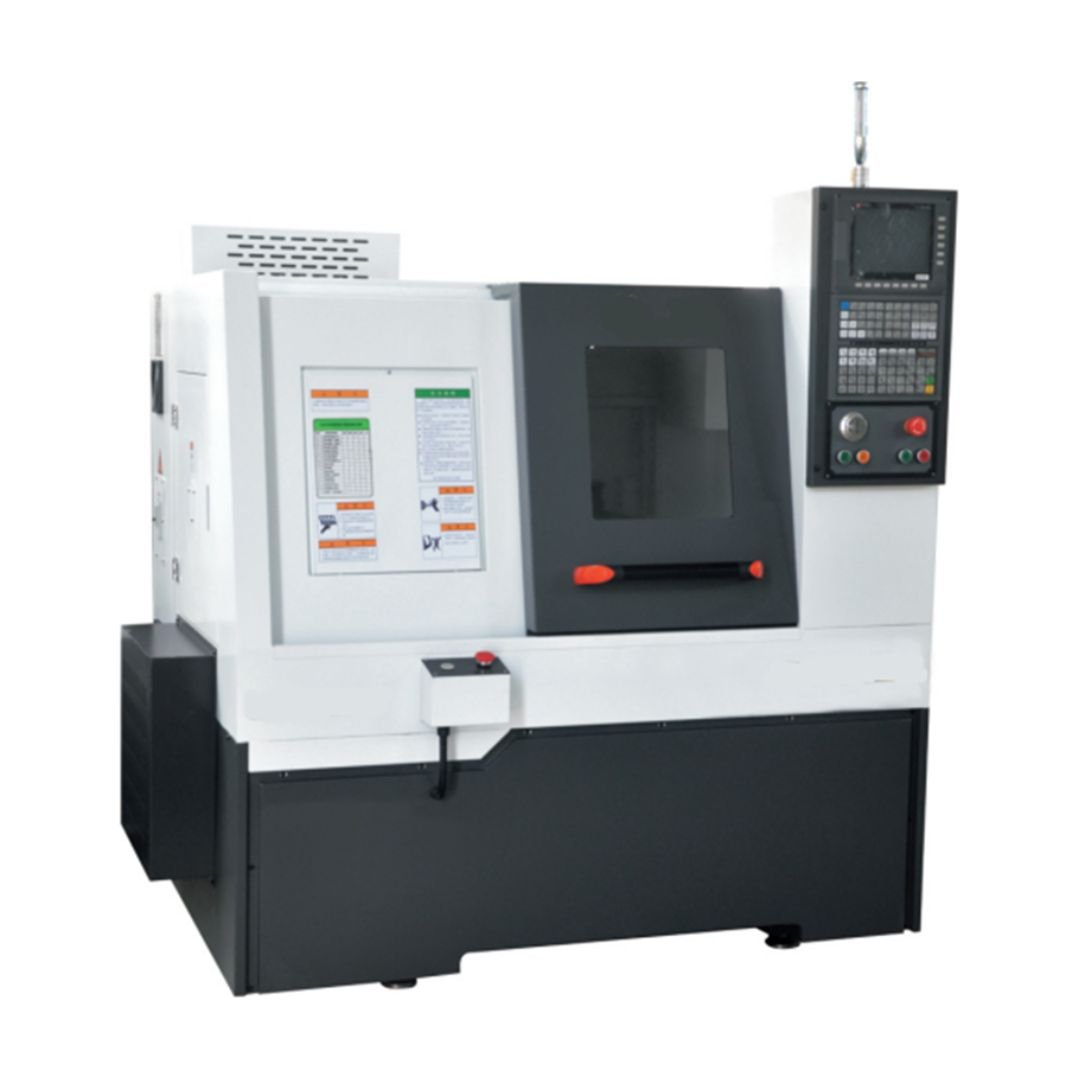

Flat-Bed Line-Rail CNC Lathe CK-0640L

Spindle drive is belt type, maximum speed: 4000rpm (standard).

The standard configuration of tool holder is row of knives.

The spindle is A2-5 set of simple spindle, with high rigidity.

Chuck clamping device for the hydraulic cylinder with simple clamp, optional hydraulic chuck.

The electrical box adopts the internal isolation design, which separates the heat source part of the controller to avoid outside dust entering the box; the rear side uses a fan to dissipate heat for the fan heat plate.

The second axis adopts high-precision ball screw, combined with precision nut pre-pressure and end pre-pull device.

Ensure that the backlash and thermal deformation of the machine are kept at a low value for a long time.

X, Z axis adopts linear guide rail, with high rigidity, low noise, low friction, can do fast displacement and get the best cycle accuracy.

Strict inspection measures are taken before the machine is shipped to ensure that the precision of the machine is stable for a long time.

Model No.	CK-0640L
Specifications
Max.Swing over bed	420 mm
Max. machining diameter	280 mm
Max. machining diameter on the tool holder	140 mm
Max .machining length	320 mm
SPINDLE
Spindle speed	4000rpm
Spindle motor	4kw
Bar through-hole, pneumatic/hydraulic cylinder	Ø40/36
Spindle head form	A2-5
FEED
Positioning accuracy	±0.005/300 mm
Maximum stroke of X-axis	500mm
Maximum Z-axis travel	400mm
Repeat positioning accuracy	±0.003mm
Other
Tailstock sleeve diameter	Ø 75mm
Tailstock sleeve diameter	150mm
Tailstock center taper hole	MT5#
General specifications
X/Z motor	4/4NM
X.Z axis screw specification	2510/3210mm
X.Z axis wire gauge specification	30/30mm
Overall Dimension	1500x1300x1800mm
Net Weight	1500kg

Standard Accessories	Optional Accessories
YJS-988TDi numerical control system	CNC system:GSK, Syntec, KND, FANUC
Alpha 11KW same service motor	Alpha 11KW main motor
250 manual three-jaw chuck	320mm three-jaw chuck
Manual tailstock	p400mm four-jaw chuck
Four-station electric tool holder	163 four-station electric tool holder
Automatic lubricating oil pump electric	Domestic or Taiwan Zhongshi/Hollow hydraulic chucks
Cooling system	six-station electric rack
Lighting system
Totally enclosed protective cover
Delixi zhengtai electrical control
