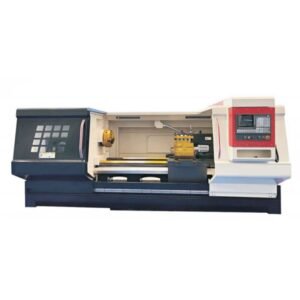

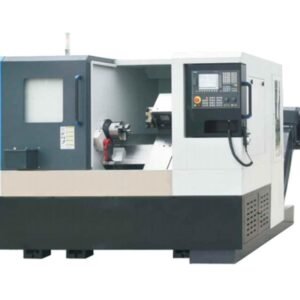

Flat-Bed Line-Rail CNC Lathe CKNC-6136L
CNC Lathe
The standard configuration of tool holder is row of knives.
The spindle is A2-5 set of simple spindle, with high rigidity.
Chuck clamping device for the hydraulic cylinder with simple clamp, optional hydraulic chuck.
The electrical box adopts the internal isolation design, which separates the heat source part of the controller to avoid outside dust entering the box; the rear side uses a fan to dissipate heat for the fan heat plate.
Strict inspection measures are taken before the machine is shipped to ensure that the precision of the machine is stable for a long time.
其他信息
| Max Swing Over Bed | 300 mm |
|---|---|
| Motor Power | 4 kw |
| Spindle Max Speed | 4000r/min |
| Repeat Positioning Accuracy | ±0.003mm |
| Positioning Accuracy | ±0.005/300 mm |
Product Details
| Model No. | CKNC-6136L |
|---|---|
| Specifications | |
| Max.Swing over bed | Ø300 mm |
| Max. machining diameter | 200 mm |
| Max. machining diameter on the tool holder | 145 mm |
| Max .machining length | 400 mm |
| SPINDLE | |
| Spindle speed | 4000rpm |
| Spindle motor | 4kw |
| Bar through-hole, pneumatic/hydraulic cylinder | Ø40 |
| Spindle head form | A2-5 |
| FEED | |
| Positioning accuracy | ±0.005/300 mm |
| Max. X-axis travel | 300mm |
| Max. Z-axis travel | 420mm |
| Repeat positioning accuracy | ±0.003mm |
| Other | |
| Hydraulic Sleeve | 48 |
| Controller system | 100ti-c |
| General specifications | |
| X/Z motor | 4/4NM |
| X.Z axis screw specification | 3208/3208mm |
| X.Z axis wire gauge specification | 30/30mm |
| Overall Dimension | 2100x1270x1600mm |
| Net Weight | 1500kg |
| Standard Accessories | Optional Accessories |
|---|---|
| YJS-988TDi numerical control system | CNC system:GSK, Syntec, KND, FANUC |
| Alpha 4KW same service motor | Alpha 5.5KW main motor |
| Hydraulic Sleeve | Hydraulic center control 5 inches, 6 inches and 8 inches |
| Cutting machine | Quadripartite knife frame |
| Hydraulic tailstock |
