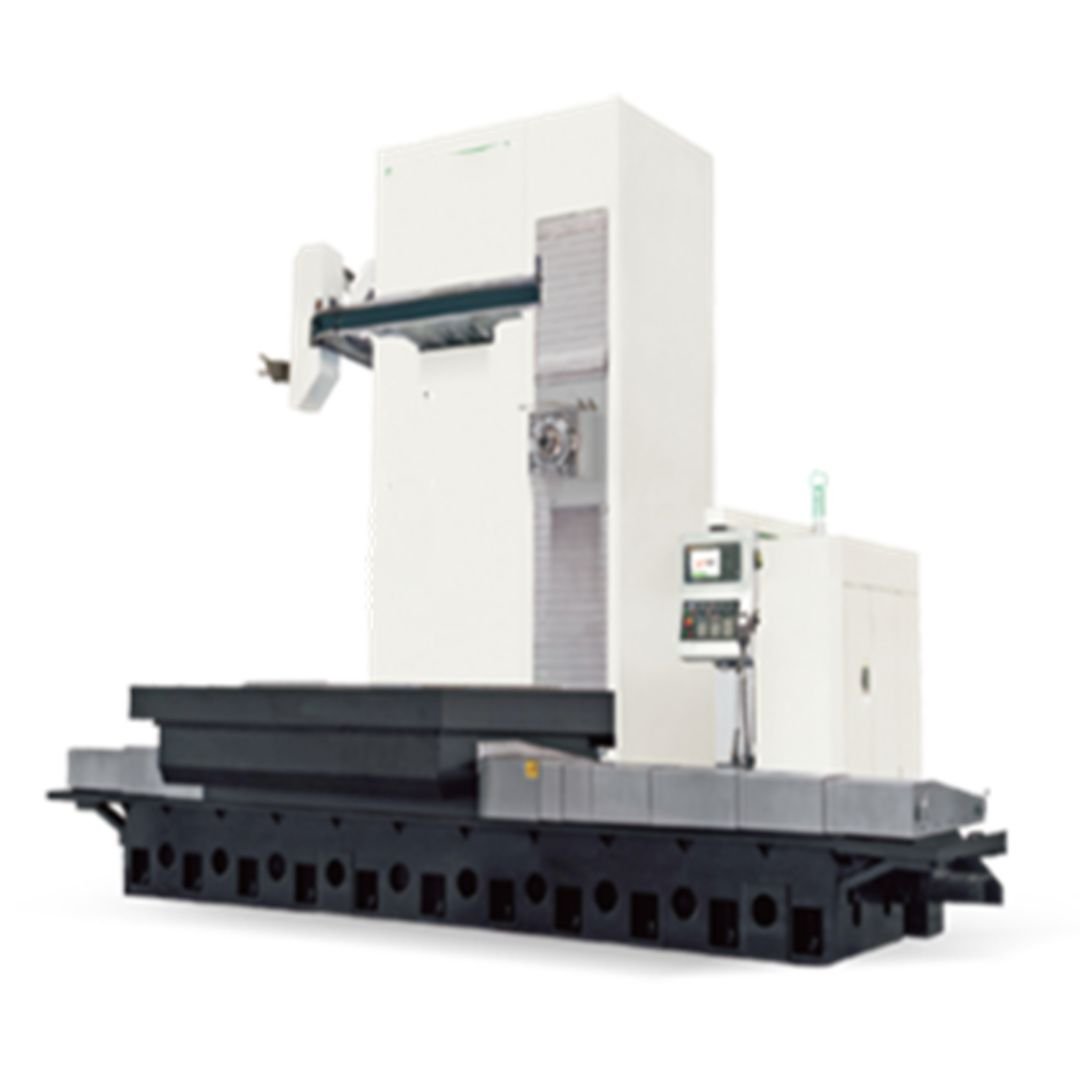

Horizontal Boring Machining Center YSBD Series
40 and 60 tools guide way type tool magazines,which are driven by a servo tool magazine,improve the overall tool change efficiency.
The Y-axis adopts a box-in-box high-rigidity right and left paired lining structure;The Y axis installs 4 linear guide guide ways, 2 front and 2 back, with high rigidity, high precision and long service life.
The X and Z axis transmission method installs direct-acting four-wheel drive. It has stable accuracy. Also, it could eliminate backlash, improve torsional rigidity and allow angle;The Y-axis installs direct-drive transmission and cooperates with a German reducer to improve torsional rigidity.
The main shaft installs European structure design,high rigidity, high speed and low vibration;Low speed and high torque for the spindle.
The linear guide way installation surface and the ball screw center are on the same plane, which makes the ball screw drive more stable and ensures the stability of the overall accuracy of the machine tool.
Product Details
| Model No. | YSMD-6042 | YSMD-8042 | YSMD-10042 | YSMD-12042 | YSMD-14042 | YSMD-16042 |
| Travel | ||||||
| X-Axis | 6000 mm | 8000mm | 10000mm | 12000 mm | 14000 mm | 16000mm |
| Y-Axis | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm |
| Z-Axis | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| Spindle nose to worktable | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm |
| Three-Axis guideway | XY Heavy Load Roller Linear Guideway Z-Axis T-Type Ram | XY Heavy Load Roller Linear Guideway Z-Axis T-Type Ram | ||||
| Door width | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm | 4200 mm |
| Worktable | ||||||
| Worktable Size (L*W) | 6000×3500 mm | 8000×3500 mm | 10000×3500 mm | 12000×3500 mm | 14000×3500 mm | 16000×3500 mm |
| Max. Table load | 50 T | 50 T | 50 T | 50 T | 50 T | 50 T |
| T-Slot | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm |
| SPINDLE | ||||||
| Spindle Type | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 |
| Spindle R.P.M. | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm |
| Spindle Drive Type | DDS | DDS | DDS | DDS | DDS | DDS |
| Feedrate | ||||||
| X/Y/Z Rapid Traverse | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min |
| X/Y/Z/ Cutting Feedrate | 6 m/min | 6 m/min | 6 m/min | 6 m/min | 6 m/min | 6 m/min |
| Tool changer | ||||||
| Tool changer ATC | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) |
| Motor | ||||||
| Spindle Motor | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw |
| Three-Axis Servo Motor | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW |
| Accuracy | ||||||
| Accuracy | 0.04/0.035/0.02 mm | 0.04/0.035/0.02 mm | 0.04/0.035/0.02 mm | 0.04/0.035/0.02 mm | 0.07/0.035/0.02 mm | 0.07/0.035/0.02 mm |
| Repeatability | 0.03/0.025/0.015mm | 0.03/0.025/0.015mm | 0.03/0.025/0.015mm | 0.03/0.025/0.015mm | 0.055/0.025/0.015mm | 0.055/0.025/0.015mm |
| Power Required | ||||||
| Power Requirement | 60 kva | 60 kva | 60 kva | 60 kva | 60 kva | 60 kva |
| Air Pressure Requirement | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 |
| Others | ||||||
| Extemnal Dimensions(LWH) | 10000x5860x5800 mm | 12000x5860x5800 mm | 14000x5860x5800 mm | 16000x5860x5800 mm | 18000x5860x5800 mm | 20000x5860x5800 mm |
| Gross Weight | 95 t | 105 t | 115 t | 125 t | 135 t | 145 t |
| Model No. | YSMD-18042 | YSMD-21042 | YSMD-6046 | YSMD-8046 | YSMD-10046 |
| Travel | |||||
| X-Axis | 18000mm | 21000 mm | 6000 mm | 8000mm | 11000mm |
| Y-Axis | 4200 mm | 4200 mm | 4600 mm | 4600 mm | 4600 mm |
| Z-Axis | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| Spindle nose to worktable | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm |
| Three-Axis guideway | XY Heavy Load Roller Linear Guideway Z-Axis T-Type Ram | ||||
| Door width | 4200 mm | 4200 mm | 4600 mm | 4600 mm | 4600 mm |
| Worktable | |||||
| Worktable Size (L*W) | 18000×3500 mm | 21000×3500 mm | 6000×3500 mm | 8000×3500 mm | 10000×3500 mm |
| Max. Table load | 50 T | 50 T | 50 T | 50 T | 50 T |
| T-Slot | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm |
| SPINDLE | |||||
| Spindle Type | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 |
| Spindle R.P.M. | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm |
| Spindle Drive Type | DDS | DDS | DDS | DDS | DDS |
| Feedrate | |||||
| X/Y/Z Rapid Traverse | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min |
| X/Y/Z/ Cutting Feedrate | 6 m/min | 6 m/min | 6 m/min | 6 m/min | 6 m/min |
| Tool changer | |||||
| Tool changer ATC | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) |
| Motor | |||||
| Spindle Motor | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw |
| Three-Axis Servo Motor | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW |
| Accuracy | |||||
| Accuracy | 0.07/0.035/0.02 mm | 0.07/0.035/0.02 mm | 0.04/0.035/0.02 mm | 0.04/0.035/0.02 mm | 0.055/0.035/0.02 mm |
| Repeatability | 0.055/0.025/0.015mm | 0.055/0.025/0.015mm | 0.035/0.025/0.015mm | 0.035/0.025/0.015mm | 0.04/0.025/0.015mm |
| Power Required | |||||
| Power Requirement | 60 kva | 60 kva | 60 kva | 60 kva | 60 kva |
| Air Pressure Requirement | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 |
| Others | |||||
| Extemnal Dimensions(LWH) | 22000x5860x5800 mm | 24000x5860x5800 mm | 10000x5860x5800 mm | 12000x5860x5800 mm | 14000x5860x5800 mm |
| Gross Weight | 155 t | 170 t | 98 t | 108 t | 118 t |
| Model No. | YSMD-12046 | YSMD-14046 | YSMD-16046 | YSMD-18046 | YSMD-21046 |
| Travel | |||||
| X-Axis | 13000 mm | 15000 mm | 17000mm | 19000mm | 22000 mm |
| Y-Axis | 4600 mm | 4600 mm | 4600 mm | 4600 mm | 4600 mm |
| Z-Axis | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| Spindle nose to worktable | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm | 350-1850 mm |
| Three-Axis guideway | XY Heavy Load Roller Linear Guideway Z-Axis T-Type Ram | ||||
| Door width | 4600 mm | 4600 mm | 4600 mm | 4600 mm | 4600 mm |
| Worktable | |||||
| Worktable Size (L*W) | 12000×3500 mm | 14000×3500 mm | 16000×3500 mm | 18000×3500 mm | 21000×3500 mm |
| Max. Table load | 50 T | 50 T | 50 T | 50 T | 50 T |
| T-Slot | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm | 36×200 mm |
| SPINDLE | |||||
| Spindle Type | BBT-50 | BBT-50 | BBT-50 | BBT-50 | BBT-50 |
| Spindle R.P.M. | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm | 6000 rpm |
| Spindle Drive Type | DDS | DDS | DDS | DDS | DDS |
| Feedrate | |||||
| X/Y/Z Rapid Traverse | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min | 6/8/8 m/min |
| X/Y/Z/ Cutting Feedrate | 6 m/min | 6 m/min | 6 m/min | 6 m/min | 6 m/min |
| Tool changer | |||||
| Tool changer ATC | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) | 24(Option:40/60) |
| Motor | |||||
| Spindle Motor | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw | 17-42 kw |
| Three-Axis Servo Motor | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW | 5.2/5.2/5.2 KW |
| Accuracy | |||||
| Accuracy | 0.06/0.035/0.02 mm | 0.07/0.035/0.02 mm | 0.08/0.035/0.02 mm | 0.09/0.035/0.02 mm | 0.10/0.035/0.02 mm |
| Repeatability | 0.045/0.025/0.015mm | 0.055/0.025/0.015mm | 0.065/0.025/0.015mm | 0.075/0.025/0.015mm | 0.085/0.025/0.015mm |
| Power Required | |||||
| Power Requirement | 60 kva | 60 kva | 60 kva | 60 kva | 60 kva |
| Air Pressure Requirement | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 | 6ˆ8 kg/cm2 |
| Others | |||||
| Extemnal Dimensions(LWH) | 16000x5860x5800 mm | 18000x5860x5800 mm | 20000x5860x5800 mm | 22000x5860x5800 mm | 24000x5860x5800 mm |
| Gross Weight | 128 t | 138 t | 148 t | 158 t | 173 t |
| Standard Accessories | Options |
| Spindle Coolant System | Optical Linear Scale |
| Automatic Lubricating System | CTS |
| Semi-Enclosed Guard | 20T/40T/60TATC |
| Rigid Tapping | Workpieces Probe |
| Heat Exchange for Electric Cabinet | Chip Conveyor System |
| Dual-Screw Type Chip Conweyor | Rotary Table |
| Dual LED Work Light | Oil Mist System |
| LED 3 Color Warning Light | Oil Skimmer |
| Chain Type Chip Conveyor and Cart | Air Conditioner |
| Geared Box | Manual/Semi-Auto 90” Milling Head |
| Leveling Bolts and Pads | Auto Parts Probe Measuring System |
| M30 Auto Off |
