Horizontal Linear & Double Triangular Hard Rail CNC Lathes CKNC-650L/650B

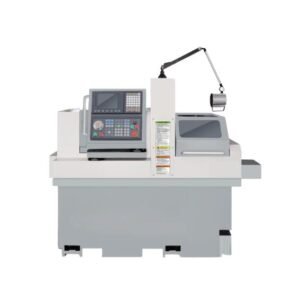

CNC Lathe
The bed body and legs are cast in resin sand, effectively treated with ultra-audio quenching, and the drag plate is plasticized.
Large hole in the 82mm spindle, three-point support four bearings of high rigidity spindle system, absolute temperature rise of less than 25 ° C.
Gear rear drive more stable and higher precision and lower noise, gears using 20GrMnTi carburizing quenching strength and wear resistance is higher, the transmission torque is greater.
X,Z direction for the line rail, reduce the coefficient of friction, run more balanced, improve precision, improve roughness.
其他信息
| Max Swing Over Bed | 650 mm |
|---|---|
| Spindle Max Speed | 550-1600 rpm 45-260 rpm,140-800 rpm,550-1600rpm |
| Motor Power | 7.5kw Ordinary main motor |
| Taper | Metric 90(1:20) |
| Spindle Bore | Ø82 mm |
Product Details
| Model No. | CKNC-650L | CKNC-650B |
|---|---|---|
| Specifications | ||
| Max.Swing over bed | 650 mm | 650 mm |
| Maximum workpiece length | 500mm | 500mm |
| Max. Cutting diameter | 300mm | 300mm |
| Max slewing through the skid plate | 330 mm | 330 mm |
| Max. travel X-axis | 380 mm | 380 mm |
| Max. travel Z-axis | 500mm | 500mm |
| Bed width | 550mm | 550mm |
| SPINDLE | ||
| Spindle head model | A2-8 | A2-8 |
| Spindle bore taper | Metric 90(1:20) | Metric 90(1:20) |
| Spindle bore | Ø82mm | Ø82mm |
| Spindle speeds | 550-1600rpm/min | 550-1600rpm/min 45-260,140-800,550-1600rpm/min |
| Spindle motor power | 7.5kw Ordinary main motor | 7.5kw Ordinary main motor |
| Torsion | ||
| x-axis | 6 N.M | 6 N.M |
| z-axis | 7.5 N.M | 7.5 N.M |
| Tool holder | ||
| Tool holder | Four-station electric tool holder + knife row | Four-station electric tool holder + knife row |
| Screw | ||
| X-axis screw | 3208/677mm | 3208/677mm |
| X-axis rapid traverse | 8m/min | 8m/min |
| Z-axis screws | 4008/1188mm | 4008/1188mm |
| Z-axis rapid traverse | 8m/min | 8m/min |
| Other | ||
| Overall dimensions | 2460x1600x1750mm | 2460x1600x1750mm |
| Net Weight | 3300kg | 3300kg |
| Standard Accessories | Optional Accessories |
|---|---|
| YJS-988TDi CNC system | CNC system:GSK, Syntec, KND, FANUC |
| 11KW same service main motor | |
| Medium 250 manual three-jaw chuck | |
| Non-motion tailstock | |
| Four-station electric tool holder | |
| Automatic lubricating oil pump | |
| Electric cooling system | |
| Lighting system | |
| Fully enclosed protective cover | |
| Delixi zhengtai electrical control components | |
| Full set of technical data | |
| Randomly attached standard parts and tools |
