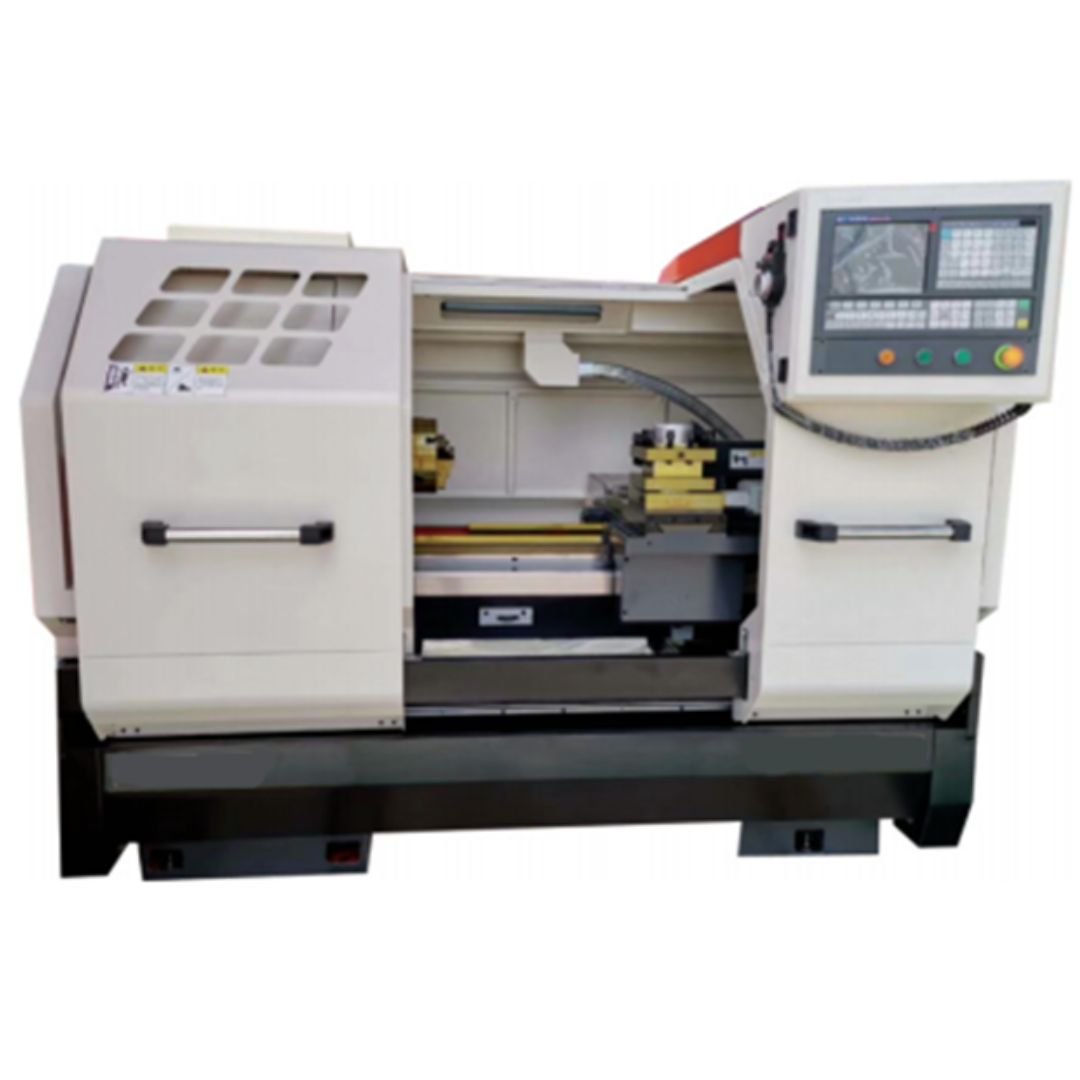

Infinitely Variable Speed CNC Lathe CNC-K400/CKNC-40S
CNC Lathe
Machine tool adopts 11 KW same service motor direct drag, can realize full infinitely variable speed. It is suitable for machining large pieces of non-ferrous metals such as aluminum and steel.
Adopt independent spindle unit, spindle through-hole diameter of 82 mm, to ensure that the spindle has a good motion accuracy, rigidity and stability.
Adopt the enlarged pallet, integral pressure plate, make the rigidity of the pallet more excellent, cutting more stable and powerful, pallet after the second aging treatment, thermal deformation is small.
其他信息
| Max Swing Over Bed | 420 mm |
|---|---|
| Motor Power | 5.5kw Ordinary main motor, 5.5kw servo motor |
| Spindle Max Speed | 20-3000r/m, Three-gear infinitely variable transmission60-300;250-800;600-2000rpm |
| Taper | MT6# |
| Spindle Head Model | A2-6 , D-6 |
Product Details
| Model No. | CNC-K400/750 | CKNC-40S/750 |
|---|---|---|
| Specifications | ||
| Max.Swing over bed | 420 mm | 420 mm |
| Max slewing through the skid plate | 210 mm | 210 mm |
| Max. travel X-axis | 295 mm | 295 mm |
| Max. travel Z-axis | 750 mm | 750 mm |
| Bed width | 335mm | 335mm |
| SPINDLE | ||
| Spindle head model | A2-6 | D-6 |
| Spindle bore taper | MT6# | MT6# |
| Spindle bore | Ø58mm | Ø58mm |
| Spindle speeds | 20-3000r/m | Three-gear infinitely variable transmission60-300;250-800;600-2000rpm |
| Spindle motor power | 5.5kw servo motor | 5.5kw Ordinary main motor |
| Servo axis | ||
| x-axis screws/z-axis screws | 2505/3210 | 2505/3210 |
| x-axis/z-axis motor torque | 4NM/6NM | 4NM/6NM |
| Tool holder | ||
| Form | Four-station electric tool holder | Four/six-station electric tool holder |
| Square shank specification | 25x25mm | 25x25mm |
| TAILSTOCK | ||
| Tailstock sleeve diameter | Ø 65mm | Ø 65mm |
| Tailstock sleeve diameter | 150mm | 150mm |
| Tailstock center taper hole | MT5# | MT4# |
| General specifications | ||
| Outline Dimension | 2200x1400x1700mm | 2200x1400x1700mm |
| Net Weight | 1700kg | 1700kg |
| Standard Accessories | Optional Accessories |
|---|---|
| YJS-988TDi numerical control system | CNC system:GSK, Syntec, KND, FANUC |
| Alpha 5.5KW same service motor | Hydraulic three-jaw chucks |
| 200 manual three-jaw chuck | Six-station electric tool holder |
| Manual tailstock | Tool row |
| Four-station electric tool holder | |
| Automatic lubricating oil pump electric | |
| Cooling system | |
| Lighting system | |
| Totally enclosed protective cover | |
| Delixi zhengtai electrical control | |
| A full set of technical data | |
| Random standard accessories and tools |
