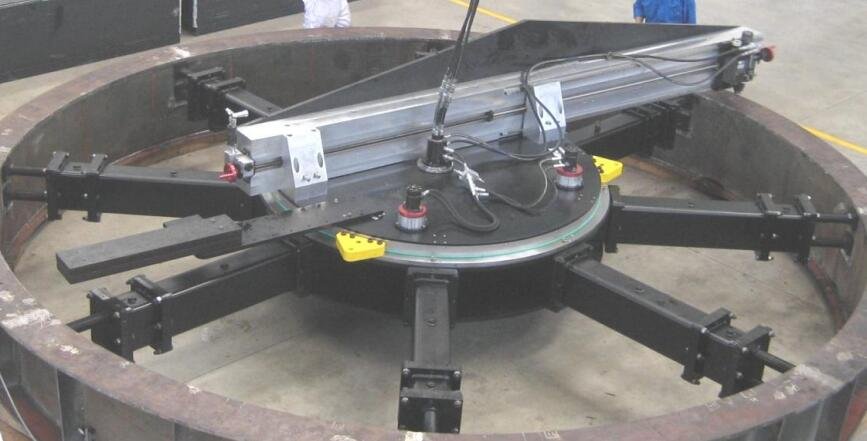

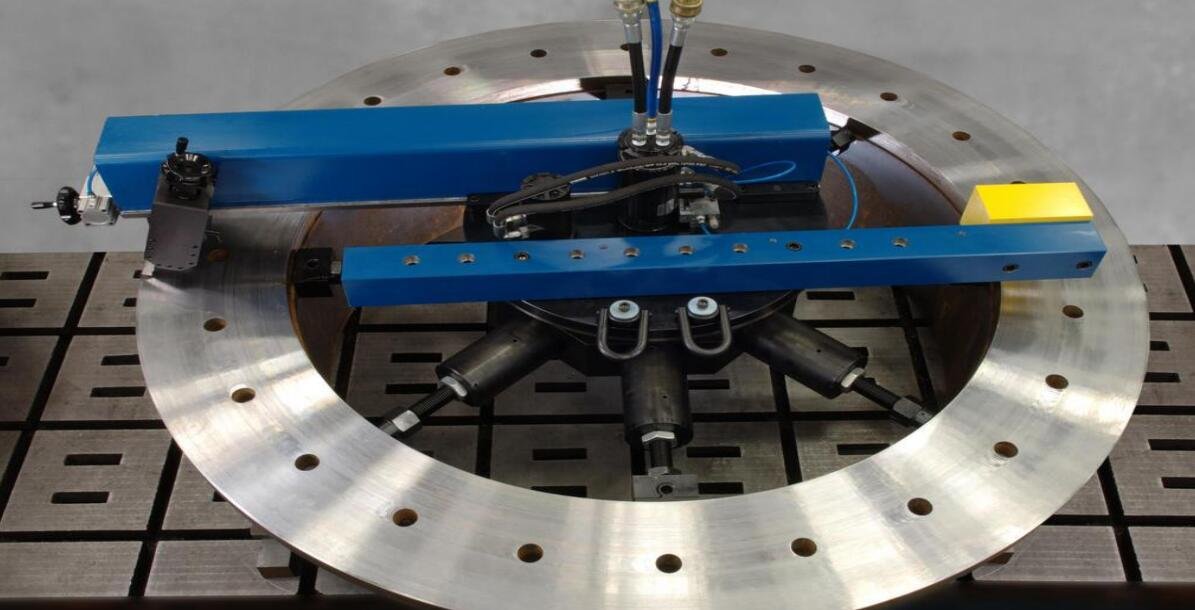

Internal Mount-Disc Flange Lathe
Portable Machine Tools
Suitable for turning diameters from Φ150mm to Φ8000mm. Capable of turning flanges, inner bores, and outer circles. Features adjustable tool holder, sealed lubrication, heavy-duty bearings, balance adjustment, 8-jaw chuck, lightweight design, and high cutting precision.
其他信息
Product Details
- Portable Lathe Machine: Portable lathe for versatile turning applications.
- Wide Turning Diameter Range: From Φ150mm to Φ8000mm.
- Flange Turning Capabilities: Turn flange end faces, inner bores, and outer circles.
- Adjustable Tool Holder: Rotate 45° for flat surfaces, bosses, and sealing grooves.
- Sealed Lubrication System: Horizontal, vertical, or upside-down installation.
- Heavy-Duty Bearings: Smooth, vibration-free operation.
- Balance Weight Adjustment: Smooth rotation for vertical flanges.
- Reliable 8-Jaw Chuck: Strong clamping with an internal diameter chuck.
- Lightweight, Powerful Design: Easy installation, stepless variable speed with constant torque.
- High Cutting Force and Precision: Single-sided feed over 5mm, high machining accuracy with Ra3.2+ surface roughness.
| Type | Machining Diameter Range φmm | Radial Max Travel (mm) | Max Axial Travel (mm) | Spindle Max Speed (rpm) | Feeding Rate (mm/r) | Main Motor Power (kW) |
|---|---|---|---|---|---|---|
| XCCP153 | 700-1500 | 300 | 50 | 20 | 0.05～0.5 (Stepless speed control) | 3 |
| XCCP204 | 800-2000 | 400 | 60 | 16 | 0.05～0.5 (Stepless speed control) | 3 |
| XCCP254 | 1000-2500 | 450 | 60 | 13 | 0.05～0.5 (Stepless speed control) | 5 |
| XCCP305 | 1200-3000 | 500 | 80 | 12 | 0.05～0.5 (Stepless speed control) | 5 |
| XCCP405 | 1500-4000 | 550 | 100 | 8 | 0.05～0.5 (Stepless speed control) | 5 |
| XCCP506 | 1800-5000 | 600 | 120 | 6 | 0.05～0.5 (Stepless speed control) | 7 |
| XCCP607 | 2400-6000 | 700 | 120 | 5 | 0.05～0.5 (Stepless speed control) | 7 |
| XCCP808 | 3000-8000 | 800 | 150 | 4 | 0.05～0.5 (Stepless speed control) | 11 |
| XCCP10010 | 4000-10000 | 1000 | 200 | 3 | 0.05～0.5 (Stepless speed control) | 11 |
