Large Auto Pipeline Flange Adjustment and Installation Vehicle

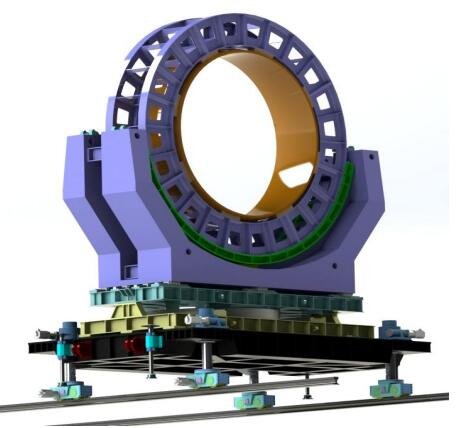

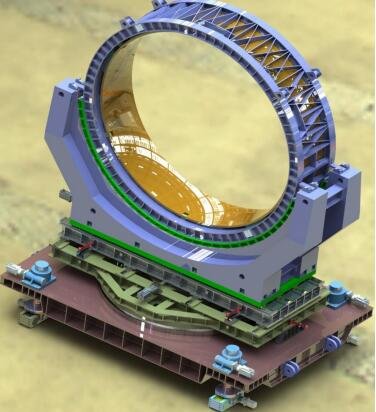

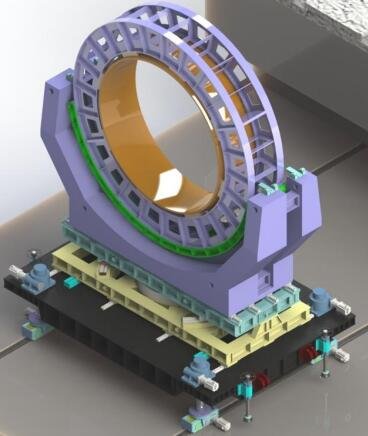

This adjustment and installation vehicle is a special equipment for special pipeline flange transmission, adjustment and installation. It mainly uses hydraulic and electric power drive to realize vertical and horizontal movement, horizontal rotation, vertical deflection, vertical rotation, etc. in order to make the moving parts and fixed parts accurately docked and installed.Its main components are walking mechanism, lifting mechanism, bottom platform, second platform, upper platform, upper bracket, rotating body, hydraulic system, electric control system and other parts. The walking mechanism realizes the long-distance movement of the flat car, the lifting mechanism realizes the height lifting and horizontal adjustment of the flat car, the second floor platform realizes the horizontal rotation with the bottom platform, the upper platform realizes the left and right movement with the second floor platform, the upper bracket realizes the front and back movement with the upper platform, and the rotating body does the vertical rotation around the upper bracket to realize the accurate alignment of the flange hole.
