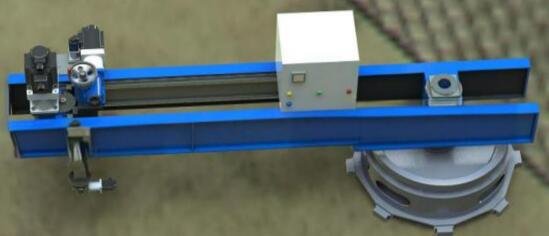

Large Traction Type Flange Milling and Boring Machine

Different specification lathe turning diameter range Φ15000-30000mm Can process flange end face, bore, outer circle, as well as flange end drilling and boring. Adopt the traction type mechanism to drive the machine rotation to ensure the machine running smoothly. Adopt floating type mechanism to drive the cross beam to ensure that the power head of the machine moves at the same height. Adopt photoelectric detection system to detect the running height of the beam and power head, and control the running height of the machine beam and power head through the closed-loop feedback combined with the floating mechanism. The overall structure is light, high horsepower, easy to install, constant torque stepless speed regulation between each speed cutting force is large, single-sided feeding capacity of 5mm or more; high machining accuracy. The surface roughness is above Ra1.6.
