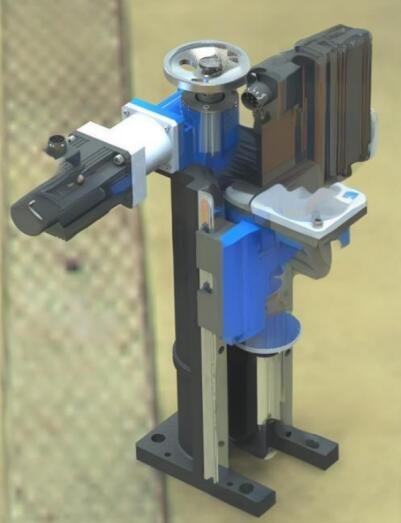

ONSITE Drilling Machine
Large part drilling in steel, copper, stainless steel. Capable of drilling, core drilling, hole enlargement, and tapping. Sealed lubrication allows horizontal, vertical, or inverted installation. Embedded linear guide ensures machining rigidity. High-precision components ensure stability, durability, and dynamic response.
其他信息
Product Details

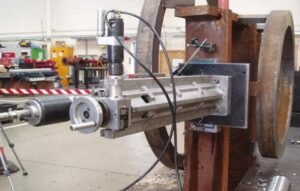

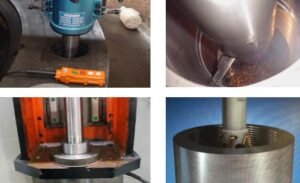

Drilling operations for large parts in steel, copper, stainless steel. Capable of drilling, core drilling, hole enlargement, and tapping. Sealed lubrication system allows horizontal, vertical, or inverted installation. Linear guide embedded in the power head ensures machining rigidity. High-precision, reliable components for stability, durability, and dynamic response. Lightweight, powerful, easy to install with stepless torque adjustment between speeds.
| Type | Max Machinable Diameter φmm | Max Axial Travel mm | Max Spindle Speed rpm | Axial Feeding Rate mm/r |
|---|---|---|---|---|
| XCZS320 | 30 | 200 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS525 | 50 | 250 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS832 | 80 | 320 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS1040 | 100 | 400 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS1250 | 125 | 500 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS1560 | 150 | 600 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS1880 | 180 | 800 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS20100 | 200 | 1000 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS25125 | 250 | 1250 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
| XCZS30150 | 300 | 1500 | 300 (Stepless speed control) | 0.01-0.29 (Stepless speed control) |
