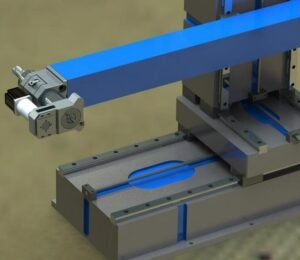

Rudder Blade Tapered Hole Key Milling Machine
Keyway milling machine handles 500-1500mm lengths, rotates cutters for variable slot widths. Linear guide rail ensures rigidity; robust spindle bearings prevent vibration. Compact, powerful, with adjustable torque. Achieves high cutting force, up to 5mm depth per cut; high precision, Ra1.6 finish.
其他信息
Product Details
Different specifications keyway milling machine processes lengths from 500 to 1500mm. Rotates various diameter milling cutters to achieve different slot widths. Embeds tool arm with linear guide rail for rigidity. Features heavy-duty, backlash-free spindle bearings for smooth operation. Compact, powerful, easy installation with stepless torque adjustment. Provides high cutting force; rough machining depth up to 5mm per side. High precision, achieving Ra1.6 surface roughness in finish machining.
| Latest Model Number | Original Model Number | Max Machinable Length (mm) | Max Machinable Width (mm) | Max Machinable Depth (mm) | Spindle Max Speed (rpm) | Feeding Rate (mm/r) | Milling Head Motor Power (kW) |
|---|---|---|---|---|---|---|---|
| MK55 | XCJC50 | 500 | 50 | 20 | 500 (Stepless speed control) | 0.01–150 (Stepless speed control) | 5 |
| MK88 | XCJC80 | 800 | 80 | 30 | 500 (Stepless speed control) | 0.01–150 (Stepless speed control) | 5 |
| MK1010 | XCJC100 | 1000 | 100 | 40 | 500 (Stepless speed control) | 0.01–150 (Stepless speed control) | 7 |
| MK1212 | XCJC125 | 1250 | 125 | 50 | 500 (Stepless speed control) | 0.01–150 (Stepless speed control) | 7 |
| MK1515 | XCJC150 | 1500 | 150 | 60 | 500 (Stepless speed control) | 0.01–150 (Stepless speed control) | 11 |
