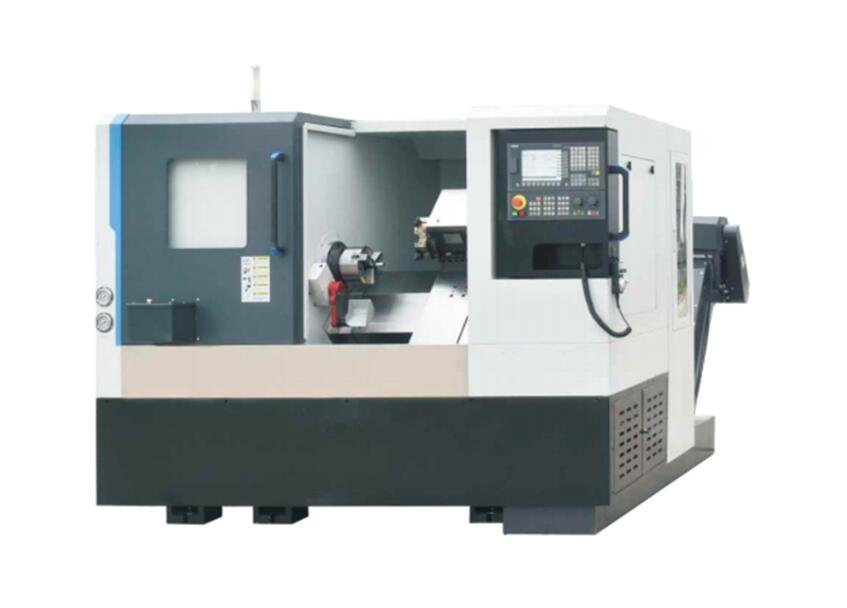

Slant bed CNC Lathe With Gang Tool or Turret CK32/CK36/CK40
Taiwan C3 grade ball screw ensures precision. Slant-bed CNC lathes feature cartridge type spindle for speed and rigidity, 6-position electrical turret standard, and 45° one-piece casting for optimal rigidity and stability.
其他信息
| CNC System | GSK, SIEMENS,FANUC (Optional), SYNTEC |
|---|---|
| Chuck | 160mm, Hydraulic Chuck |
| Spindle Max Speed | 3000rpm, 4000rpm |
| Motor Power | 4kw,*5.5kw, 5.5kw,*7.5kw |
| Over All Dimension | 2400*1450*1780 mm |
Product Details
Taiwan brand high precision C3 grade ball screw ensurepositioning accuracy;
All of slantbed CNC lathe series are with cartridge type spindle,which provides the very best combination of speed and rigidity.
6-Position Electrical Turret/China is standard on theModel. Bi-directional Pragatiturret is optional. High quality, high speedturret provides optimal tool change efficiencyand speed.
All slant bed CNC series with 45" integrated slant-bed base and bed wholly, one-piece casting provide best rigidity and stability.
| Model No. | CK32 | CK36 | CK40 |
|---|---|---|---|
| Bed structure&Raill | Slant bed CNC Lathe-Linear Guide | Slant bed CNC Lathe-Linear Guide | Slant bed CNC Lathe-Linear Guide |
| Basic | |||
| Max. machining length（Distace between centers） | 200mm | 250 mm | 250 mm |
| Swing over bed | Ø350 mm | Ø 360 mm | Ø 400 mm |
| Swing over silde | Ø 185 mm | Ø 130 mm | Ø 180 mm |
| SPINDLE | |||
| Spindle type | Cartrindge type spindle | Cartrindge type spindle | Cartrindge type spindle |
| Spindle speed | 4000rpm | 4000rpm | 4000rpm,x3000rpm |
| Spindle bore | Ø56mm | Ø61mm | Ø61mm,x Ø79mm |
| Max.dia of through-hole | Ø40mm | Ø50 mm | Ø50mm ,xØ60mm |
| Spindle nose | A2-5 | A2-5 | A2-6 |
| Stroke&Feeding Speed | |||
| X axis travel | 350mm | 470mm | 470mm |
| Z axis travel | 300mm | 400 mm | 400 mm |
| X/Z axis Rapid traverse | 15/15 m/min | 15/15 m/min | 15/15 m/min |
| Chuck | |||
| Collect Chuck type | Hydraulic Chuck | Hydraulic Chuck | Hydraulic Chuck |
| Chuck Diameter | 160mm（6”） | 160mm（6”） | 200mm（8”） |
| Turret | |||
| Turret type | Electrical turret,xHydraulic turret,Gang tool/6 | Electrical turret,xHydraulic turret,Gang tool/6 | Electrical turret,xHydraulic turret,Gang tool/6 |
| Tool position number | 6(20x20mm),x8(20x20mm) | 6(20x20mm),x8(20x20mm) | 8(25x25mm),x12(20x20mm) |
| Tailstock Sleeve | |||
| Tailstock type | No tailstock | No tailstock | No tailstock |
| Motor | |||
| Spindle motor type | Servo spindle motor | Servo spindle motor | Servo spindle motor |
| Spindle motor power | 4kw,x5.5kw | 5.5kw,x7.5kw | 5.5kw,x7.5kw |
| Coolant pump power | 200 W | 200 W | 200 W |
| Machine Dimensions | |||
| Overall dimension(LxWxH) | 2400x1450x1780 mm | 2400x1450x1780 mm | 2400x1450x1780 mm |
| Packing size(LxWxH) | 2960x2220x2220 mm | 2960x2220x2220 mm | 2960x2220x2220 mm |
| Net/Gross weight | 2800/3100 kg | 3100/3400 kg | 3200/3500kg |
| Standard Configuration | Optional Configuration |
|---|---|
| GSK 980TC3 controller | Siemens, Fanuc, Syntec, Controller |
| GSK feed motor and driver | Electrical turret /8 position |
| Cartridge type spindle | Hydraulic turret/8,12 position |
| GSK servo spindle motor | Gang tool /6 |
| Hydraulic hollow 3-jaw chuck | Collet chuck |
| Electrical turret / 6 position | Automatic bar-feeder |
| Work light | Chip conveyor |
| Automatic lubrication system Automatic | |
| Automatic cooling system | |
| Taiwan screw and Linear guide rail |
