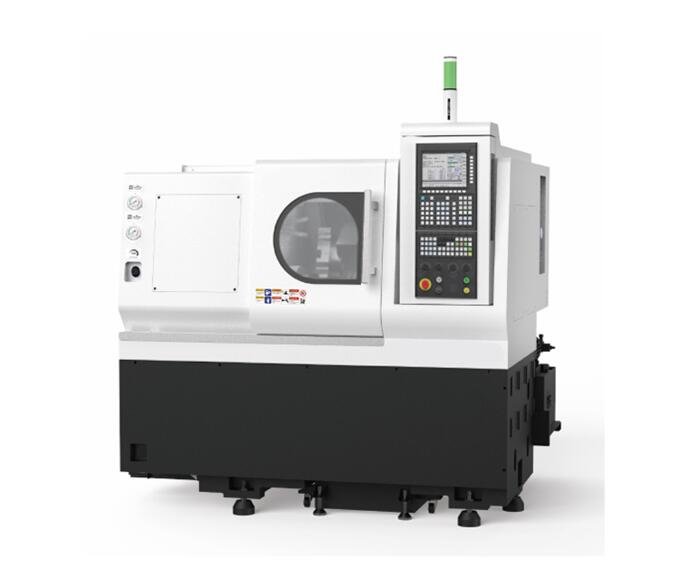

Slant Bed Turret CNC Lathe TT4530YF
CNC Lathe
Composite Y-axis layout structure.
Arrangement of large-span roller guide rail.
High-precision oil-cooled synchronous built-in motor spindle.
Equipped with high rigid power turret and Y-axis interpolation to perfectly realize composite machining.
All axis lead screws adopt pre-stretching structure to improve the accuracy of repeated positioning.
High-precision hydraulic tailstock, tailstock guide rail removable
其他信息
| Chuck | 6 inch, 8 inch |
|---|---|
| Swing Diameter Over Bed | Ø620 mm |
| Swing Diameter Over Slide | Ø 350 mm |
| Spindle Nose | A2-6 |
| Spindle Max Speed | 5000 r/min |
Product Details
| Model No. | TT4530YF |
|---|---|
| Basic | |
| Chuck size | 6/8 inch |
| Swing diameter over bed | Ø620 mm |
| Swing diameter over slide | Ø 350 mm |
| Max turning dimension | Disc Ø270 mm |
| Max turning length | 350 mm |
| Bar through hole | Ø45 mm |
| X/Z/Y/C axis travel | 220mm/385mm/±50/360° |
| X/Z/Y/C axis rapid travel speed | 24/24/10 m/min |
| Repeatability accuracy X/Z/Y axis | 0.003/0.005/0.005 mm |
| SPINDLE | |
| Spindle speed | 5000 r/min |
| Spindle nose | A2-6 |
| Spindle through hole | Ø56 mm |
| Tailstock | |
| Tailstock type | Hudraulic |
| Tailstock quill taper | MT5 |
| Tailstock quill dimension | Ø85 mm |
| Tailstock quill travel | 120 mm |
| Powered turret (12T) | |
| Tool shank dimension | 25×25 mm |
| Boring tool size | Ø32 mm |
| Max.milling capacity | Milling tool Ø16 mm Milling depth 8mm Feeding 30mm/min |
| Max.drilling capacity | Drilling dimension Ø14 mm Feeding 25 mm/r |
| Max.tapping capacity | Tapping dimension M10 |
| Machine Dimensions | |
| Overall dimension(LxWxH) | 2375x2030x2030 mm |
| weight | 3880 kg |
