Spherical Tile Boring Machine

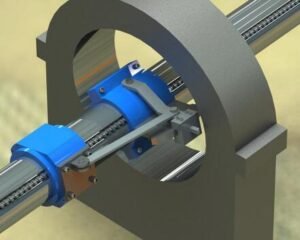

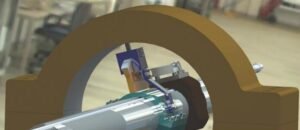

Adding a spherical tool holder to the boring machine, which consists of a circular guide, a positioning bar and a tool walking push bar. One end of the tool walking push rod is hinged to the head and the other end is hinged to the tool holder, which moves the head axially through the tool walking mechanism of the boring machine and pushes the tool holder to rotate on the fixed axis through the tool walking rod. The composite motion of tool rotation and fixed-axis rotation machines the spherical hole.
其他信息
Product Details
Adding a spherical tool holder to the boring machine, which consists of a circular guide, a positioning bar and a tool walking push bar. One end of the tool walking push rod is hinged to the head and the other end is hinged to the tool holder, which moves the head axially through the tool walking mechanism of the boring machine and pushes the tool holder to rotate on the fixed axis through the tool walking rod. The composite motion of tool rotation and fixed-axis rotation machines the spherical hole.
| Latest Model Number | Original Model Number | Boring Bar Diameter φmm | Max Boring Bar Length mm | Machinable Diameter φmm | Boring Bar Max Speed rpm | Feeding Rate mm/r | Boring Bar Max Torque Nm |
|---|---|---|---|---|---|---|---|
| BR1150 | XCQ110 | 110 | 5000 | 410-880 | 54 | Two Gears Optional 0.17 0.3 | 480 |
| BR1260 | XCQ125 | 125 | 6000 | 425-1000 | 54 | Two Gears Optional 0.17 0.3 | 480 |
| BR1560 | XCQ150 | 150 | 6000 | 450-1200 | 35 | Two Gears Optional 0.17 0.3 | 1230 |
| BR1880 | XCQ180 | 180 | 8000 | 480-1440 | 29 | Three Gears Optional 0.17 0.27 0.46 | 1480 |
| BR20100 | XCQ200 | 200 | 10000 | 600-1600 | 29 | Three Gears Optional 0.17 0.27 0.46 | 1480 |
| BR25120 | XCQ250 | 250 | 12000 | 650-2000 | 32.5 | Three Gears Optional 0.17 0.27 0.46 | 1850 |
| BR30120 | XCQ300 | 300 | 12000 | 700-3200 | 28 | Three Gears Optional 0.17 0.27 0.46 | 2150 |
| BR35120 | XCQ350 | 350 | 12000 | 750-5000 | 25 | Three Gears Optional 0.17 0.27 0.46 | 2405 |
| BR40120 | XCQ400 | 400 | 12000 | 800-7500 | 22 | Three Gears Optional 0.17 0.27 0.46 | 2735 |
