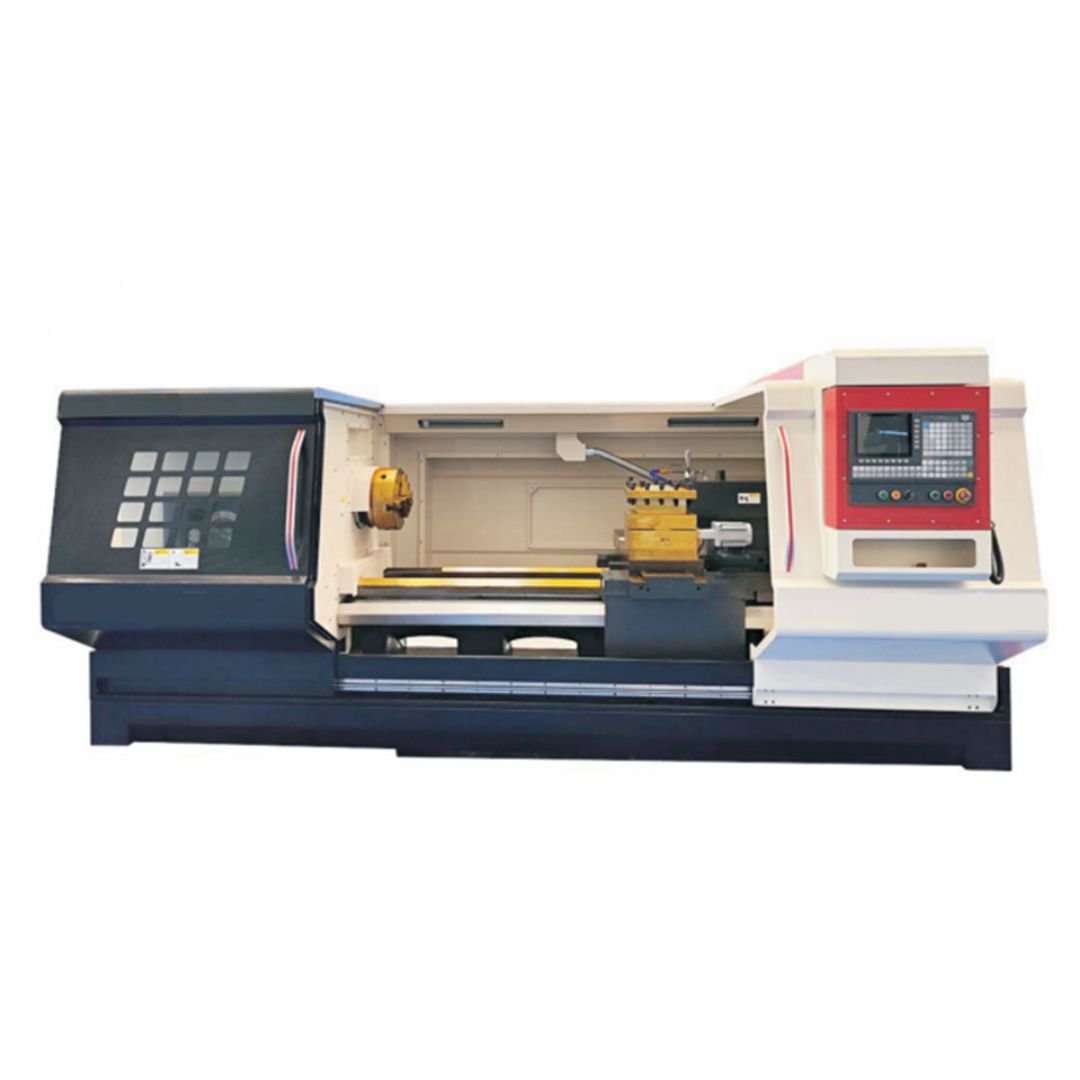

Square Head Gearbox Four-Speed Sectional Variable Speed CNC Lathe CKNC-61125/CKNC-61100
CNC Lathe
The bed body and bed foot adopt resin sand casting aging treatment, and the guide rail adopts ultra-audio quenching.
The main sliding surface adopts plasticized process to eliminate crawling and improve precision retention.
X,Z screws adopt three support structure.
其他信息
| Max Swing Over Bed | 1000 mm, 1250 mm |
|---|---|
| Motor Power | 22kw |
| Spindle Max Speed | 20-400r/min |
| Spindle Bore | Ø130 mm |
| Spindle Head Model | A2-15 |
Product Details
| Model No. | CKNC-61125 | CKNC-61100 |
|---|---|---|
| Specifications | ||
| Max. Swing over bed | 1250 mm | 1000 mm |
| Max. rotary diameter through the slide | 860mm | 650mm |
| Max. distance between centers | 1500 mm | 1500 mm |
| Max. travel X-axis | 520 mm | 520 mm |
| Max. travel Z-axis | 4006mm,8012/23Nm/27Nm+Reduction gear | 4006mm,8012/23Nm/27Nm+Reduction gear |
| Width of bed guideway | 755mm | 755mm |
| SPINDLE | ||
| Spindle head model | A2-15 | A2-15 |
| Spindle bore | Ø130mm | Ø130mm |
| Spindle speeds | 20-400r/min | 20-400r/min |
| Spindle motor power | 22kw | 22kw |
| Tool holder | ||
| Tool holder | Vertical four-station 300×300 | Vertical four-station 300×300 |
| Tailstock | ||
| Tailstock sleeve diameter/stroke | Ø160/L-300 mm | Ø160/L-300 mm |
| Taper hole of tailstock center | MT6 | MT6 |
| Other | ||
| Power supply specifications | 380V | 380V |
| Outline Dimension | 460021002300mm | 460021002300mm |
| Net Weight | 9800kg | 9800kg |
| Standard Accessories | Optional Accessories |
|---|---|
| YJS-988TDi control system | CNC system: GSK, Syntec, KND, FANUC |
| Alpha same service motor | Alpha 11KW servo main motor |
| 22kw common main motor | |
| 800 manual 4-jaw chuck | |
| Manual tailstock | |
| Electric tool holder | |
| Automatic lubrication system | |
| Electric cooling system | |
| Lighting system | |
| Semi-closed protective cover | |
| Delixi Zhengtai electrical control | |
| A full set of technical data | |
| Random standard accessories and tools |
