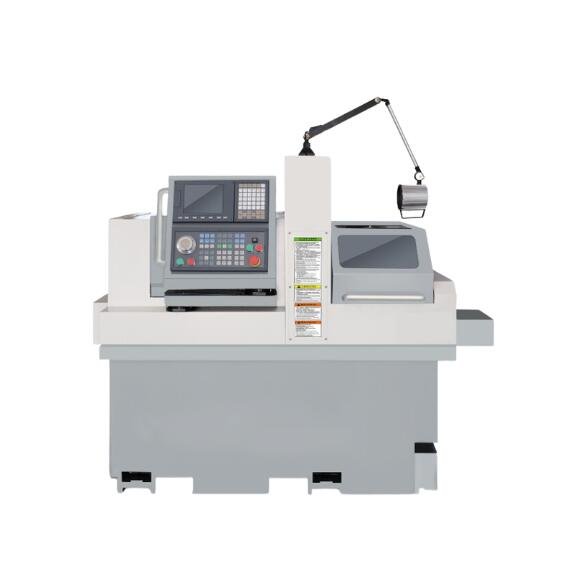

Swiss-type CNC precision automatic lathe TC203M

Each axis uses imported high-precision linear guide,ball screws and precision bearings.

Use synchronous guide bush structure,realize high-speed and high-precision machining.

Key components with gas sealing structure, oil and slag prevention, improving service life and stability.

Select high torque motor, high rigidity and strength each axis slide and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.

High scalability, with different tool quantities matched according to the process, resulting in high cost-effectiveness.

Extended Z-axis configuration,machining stroke can reach 230 mm, significantly reduce the number of feeding times and improve processing efficiency.

Item	Details
Model No.	TC203M
Configuration	3 axis, single spindle
NC System	SYNTEC 22TB
Lathe Rated Power	8 kW
Maximum Machining Diameter	Ø20 mm
Maximum Machining Length (Guide Bush)	230 mm
Maximum Machining Length (Non Guide Bush)	2D
Main Spindle Power	3 kW
Sub Spindle Power	–
Main Spindle Max Through Hole Dia	Ø23 mm
Main/Sub Spindle Rev Speed	6000 / – rpm
Sub Spindle Max Clamping Dia	–
Sub Spindle Max Through Hole Dia	–
Max Tool Installed Quantity	14
OD Turning Tool (Qty x Model)	6 x □12 mm
Cross Live Tool (Qty x Model)	2 x ER16, 2 x ER11
Drilling Diameter	Ø10 mm
Tapping/Threading Die Diameter	M6
Live Tool Rev Speed	5500 rpm
Live Tool Power	1 kW
End-Face Tool (Main Spindle)
– Fixed (Qty x Model)	4 x ER11
– Drilling Diameter	Ø7 mm
– Tapping/Threading Die Diameter	M6
End-Face Live Tool	–
Side Live Tool	–
Rapid Feed Speed	18(X) / 24(Z/Y) m/min
Feed Motor Power	0.85 kW
Power Capacity	7.5 kVA
Air Pressure Device	0.6 MPa
Machine Weight	1600 kg
Machine Dimensions (L x W x H)	1950 x 1070 x 1650 mm

Standard Configuration	Optional Configuration
SYNTEC Numerical Control System	MITSUBISHI Numerical Control System
Main Pneumatic Chucking Device	FANUC Numerical Control System
Movable Guide Bush	High Pressure Pump
Synchronal Rotary Guide Bush Device	Oil Mist Collector
Live Tool	Chip Conveyor
