Waist Type Hole Boring and Milling Machine
Portable Machine Tools

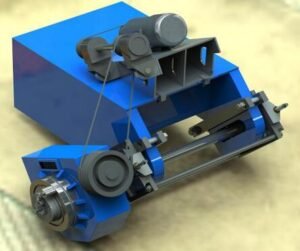

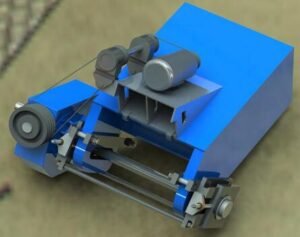

The device comprises a drive unit, tool feed gearbox, dual slides, boring bar, and motor frame, designed for machining long waist holes, such as hydraulic hatch cover waist hole processing on ships.
其他信息
Product Details
The device comprises a drive unit, tool feed gearbox, dual slides, boring bar, and motor frame, designed for machining long waist holes, such as hydraulic hatch cover waist hole processing on ships.
| Latest Model Number | Original Model Number | Machinable Slot Width mm | Vertical Travel mm | Max Spindle Speed rpm | Feeding Rate mm/r | Milling Head Motor Power kW |
|---|---|---|---|---|---|---|
| MW31 | XCYX30 | 30 | 150 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 5 |
| MW42 | XCYX40 | 40 | 200 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 5 |
| MW53 | XCYX50 | 50 | 300 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 5 |
| MW64 | XCYX60 | 60 | 400 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 5 |
| MW85 | XCYX80 | 80 | 500 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 7 |
| MW106 | XCYX100 | 100 | 600 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 7 |
| MW158 | XCYX150 | 150 | 800 | 500 (Stepless speed control) | 0.01-0.5 (Stepless speed control) | 11 |
