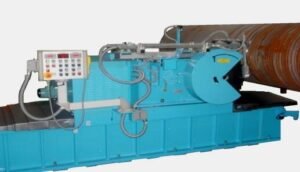

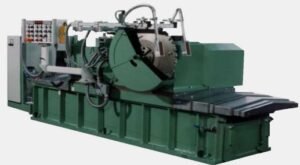

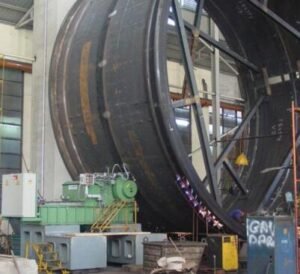

Weld Root Cleaning Machine
External Pipe Beveling Machine consists of bed, guideway, main power unit, drive motor with reducer, cutter head, sensors, electrical control system. Installed on one side of the pipeline, driven by external power for rotation. The machine moves along the pipeline direction on steel rails or on the ground. Equipped with lateral guideways, the cutter head advances horizontally with the main power unit.
其他信息
Product Details
External Pipe Beveling Machine consists of bed, guideway, main power unit, drive motor with reducer, cutter head, sensors, electrical control system. Installed on one side of the pipeline, driven by external power for rotation. The machine moves along the pipeline direction on steel rails or on the ground. Equipped with lateral guideways, the cutter head advances horizontally with the main power unit.
| Latest Model Number | Original Model Number | Machinable Width mm | X-axis Travel mm | Max Machinable Pipe Diameter φmm | Max Machinable Depth mm | Max Insert Diameter φmm | Max Spindle Speed rpm | Feeding Rate mm/min | Spindle Motor Power kW |
|---|---|---|---|---|---|---|---|---|---|
| MH215 | XCQG20 | 250 | 1500 | 3000 | 20 | 250 | 60 | 200 | 7 |
| MH325 | XCQG30 | 320 | 2500 | 5000 | 30 | 315 | 45 | 250 | 7 |
| MH430 | XCQG50 | 400 | 3000 | 6000 | 50 | 400 | 35 | 320 | 7 |
| MH540 | XCQG60 | 500 | 4000 | 8000 | 60 | 500 | 28 | 400 | 7 |
| MH650 | XCQG80 | 600 | 5000 | 10000 | 80 | 630 | 25 | 500 | 7 |
| MH860 | XCQG100 | 800 | 6000 | 12000 | 100 | 800 | 16 | 600 | 7 |
