Struggling with slow, messy metal cuts? The extra finishing work and design limits are frustrating. Laser cutting offers a cleaner, faster, and more precise solution for your fabrication needs.

Laser cutters offer superior precision, faster speeds, and cleaner edges that often eliminate secondary finishing. They are highly flexible for complex designs, work with many metals, and are more environmentally friendly.

Laser cutting was different from the start. It changed the game by solving so many problems at once. You might wonder how a beam of light can be so powerful and precise. This technology is not just an upgrade; it is a fundamental shift in how we approach metal fabrication. Let’s break down exactly what makes this technology so revolutionary for workshops of any size.

How Do Laser Cutters Deliver Superior Precision Over Traditional Metal Cutting Methods?

Tired of imprecise cuts from traditional tools? Tool wear and mechanical stress can ruin expensive parts, leading to high scrap rates. Laser cutters use a non-contact beam of light for unmatched, repeatable precision.

Lasers focus energy into a tiny, non-contact point, melting or vaporizing material instantly. This avoids tool wear and mechanical stress. Paired with CNC control, it achieves tolerances as tight as ±0.1 mm with incredible repeatability.

The incredible precision of laser cutting comes from its unique method of action. It can produce parts for aerospace and precision instruments that would be impossible with older tools. It boils down to a few key factors.

The Power of Focus

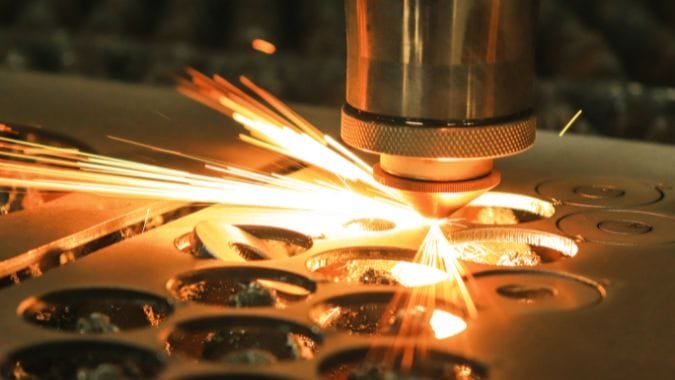

A laser beam is focused through an optical system into an incredibly small spot, sometimes just 0.1 millimeters in diameter. This concentrates a huge amount of energy, allowing it to instantly melt or vaporize the material in a very controlled way. This allows for extremely fine patterns and contours with a very narrow cut width, or kerf.

Non-Contact, Stress-Free Cutting

Traditional methods like punching or sawing exert physical force, which can cause wear on the tool and mechanical stress on the workpiece, leading to deformation. Laser cutting¹ is a "non-contact" process. The beam of light does all the work, so there is no tool wear to degrade accuracy over time and no physical stress to damage delicate parts.

Computerized Numerical Control (CNC)

This precision is guided by a highly accurate CNC system. The machine follows a digital path programmed by a computer, achieving positioning accuracy down to the micron level. This ensures that every part is an exact replica of the last, with some systems achieving part repeatability of ±0.05 mm.

Method	Typical Precision	Key Limitation
Laser Cutting	±0.1 mm	High initial equipment cost
Plasma Cutting	~1 mm	Larger heat-affected zone2, rougher edge
Oxy-fuel Cutting	~1.5mm+	Limited to ferrous metals; high heat distortion
Mechanical Punching	~0.2 mm	Risk of deformation; tool wear affects accuracy

What Are the Speed and Efficiency Gains of Laser Cutting for Complex Metal Parts?

Are complex metal parts slowing down your production line³? Multiple setups and slow cutting speeds can kill your efficiency. Lasers cut intricate designs in a single, lightning-fast operation, boosting your throughput.

Laser cutters use high power to vaporize metal rapidly, reaching speeds over 10 meters per minute. They cut complex shapes directly from a digital file in one pass, eliminating tool changes and enabling 24/7 automation.

The improvement in speed is one of the first things people notice when they switch to laser cutting. But it’s about more than just how fast the cutting head moves; it’s about how the entire workflow is streamlined.

Raw Cutting Speed and Automation

A high-power laser brings the material to its melting or vaporization point in an instant. This allows for normal cutting speeds that can reach 10 meters per minute, with positioning speeds of up to 70 meters per minute between cuts. Because they are highly automated, these machines can run 24/7 with minimal operator intervention, making them incredibly efficient for both high-volume and high-mix production.

No Tool Changes Required

A huge source of downtime in traditional fabrication is changing tools for different cuts or shapes. A laser cutter uses the same beam to create straight lines, intricate curves, and tiny holes. It can switch between cutting dozens of different parts on a single sheet of metal without ever stopping for a tool change. This seamless transition from one complex shape to the next is a massive efficiency gain. It makes lasers perfect for producing custom parts or prototypes without the setup time of traditional methods.

How Does Laser Cutting Improve Edge Quality and Minimize Secondary Finishing?

Frustrated with rough edges, dross, and burrs on your cut parts? The extra time and cost of grinding and deburring add up fast. Lasers produce a smooth, clean edge right off the machine.

The focused, non-contact beam melts material cleanly, and a jet of assist gas blows it away. This leaves a smooth, burr-free edge with a very small heat-affected zone, often eliminating the need for grinding.

One of the biggest hidden costs in fabrication is secondary finishing⁴. Getting a perfect edge quality directly from the machine is a huge advantage. It requires optimizing the cutting process, but when dialed in, the results are incredible. We’ve helped clients achieve a mirror-like finish⁵ that requires no further work.

Clean Cutting Mechanism

The laser beam’s intense energy melts or vaporizes a very small amount of material. At the same time, a high-pressure jet of assist gas—like nitrogen or oxygen—is directed at the cut, blowing the molten material cleanly away. This process leaves behind a smooth, sealed edge with little to no burrs or dross.

Minimal Heat-Affected Zone (HAZ)

Compared to plasma or oxy-fuel cutting, laser cutting produces a very small heat-affected zone². This means the properties of the metal right next to the cut are not significantly altered. The result is less thermal distortion and warping, preserving the part’s flatness and structural integrity. This is especially critical for heat-sensitive materials or parts that need to fit together with tight tolerances. This high-quality edge often eliminates the need for secondary processes like grinding, sanding, or deburring, saving both time and labor costs.

What Environmental and Safety Advantages Does Laser Cutting Offer Over Plasma or Oxy-Fuel?

Worried about the fumes, noise, and safety risks of plasma or oxy-fuel cutting? A safe and clean workshop is a productive one. Lasers offer a much better alternative for your team and the environment.

Lasers produce no chemical emissions, only dust that is easily filtered. They are much quieter and, as a non-contact process, reduce risks like burns from open flames or high-temperature arcs.

When you walk into a workshop running a modern laser cutter versus one with older plasma or oxy-fuel systems, the difference is immediate. The air is cleaner, the noise level is drastically lower, and the entire operation feels safer.

Environmental Benefits

Laser cutting is a much cleaner process. It doesn’t rely on combustion, so it avoids the exhaust gas pollution of oxy-fuel cutting. The only byproduct is fine dust, which is captured by an integrated filtration system. Newer fiber laser technologies are also more energy-efficient⁶ than older CO2 lasers or plasma systems. The precision of the cut creates a very narrow kerf, which minimizes material waste⁷ and optimizes your use of expensive metal sheets.

Enhanced Workshop Safety

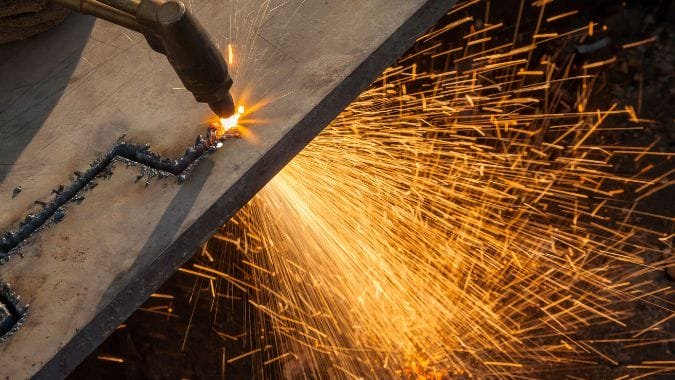

Operator safety is a huge advantage. Most laser cutters are fully enclosed, which protects the operator from the laser beam, moving parts, and fumes. This is a world away from the open arcs of plasma cutters, which can operate at 40,000°F, or the open flames of oxy-fuel systems. Laser cutting avoids the use of highly flammable gases like acetylene, reducing fire and explosion risks. It is also significantly quieter than the loud roar of a plasma arc, creating a better working environment.

Aspect	Laser Cutting	Plasma Cutting	Oxy-Fuel Cutting
Emissions	Filtered dust only; uses inert gas	Fumes, requires heavy ventilation	Exhaust gas, smoke
Noise Level	Low	Very High	High
Operator Risk	Low (enclosed, non-contact)	High (open arc, electric shock)	High (open flame, burns)
Flammable Gas	None	None	Yes (e.g., acetylene)

Conclusion

Laser cutting delivers superior precision⁸, speed, and edge quality. This flexible and safe technology streamlines metal fabrication, saving significant time and money while producing better parts.

---
