Choosing the wrong CNC lathe can be a costly mistake. It leads to inefficiencies, an inability to process your parts, and ultimately, lost profits. Understanding key workpiece features is your first step to a smarter investment.

The most critical workpiece features influencing CNC lathe selection are its maximum swing diameter, maximum actual turning diameter, maximum turning length, the material of the workpiece, its precision requirements, expected production volume, and the general type of parts you’ll primarily machine (like discs, short shafts, or slender shafts).

So, you now have a basic idea of what to look for. But to truly make an informed decision for your workshop, we need to explore each of these features in more detail. It’s not just about knowing the terms; it’s about understanding how they directly impact what your lathe can and cannot do. Let’s break these down so you can confidently choose the right machine for your specific needs.

What is the Importance of Considering the Max Swing Diameter?

Ignoring the max swing diameter can lead to a big surprise. Your new workpiece might not even fit on the machine, or worse, it could collide with the bed or tool post during setup. Let’s understand this crucial specification.

The maximum swing diameter refers to the maximum diameter range allowed by the lathe when the workpiece rotates in the spindle. If your workpiece exceeds this diameter, it simply may hit the lathe bed or other parts of the machine, making it impossible to even mount correctly.

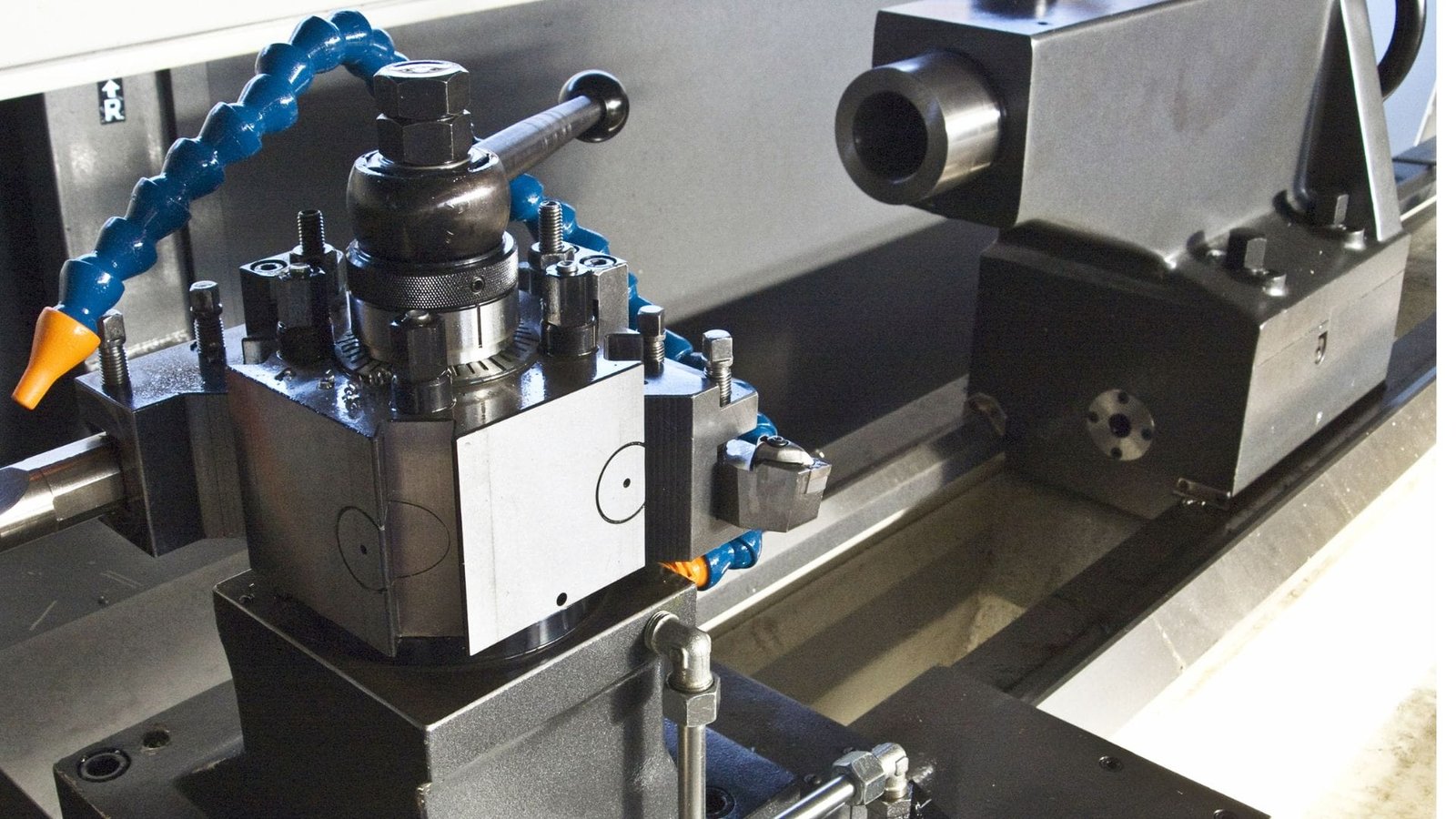

Think of it as the absolute largest circular space a workpiece can occupy on the lathe without physically hitting anything. This diameter is determined by the distance from the spindle centerline to the nearest machine component, typically the bedways. You might also see a "swing over cross slide" or "swing over carriage" specification, which is usually smaller than the "swing over bed¹." This matters because if you have an irregularly shaped part, or a raw casting with protrusions, the max swing tells you if it will even clear the machine structure during rotation. For instance, if a flange has an odd boss on one side, the overall diameter including that boss needs to be within the swing capacity. It’s the first check for physical fit before you even think about the actual cutting tools. Remember, this is about clearance, not necessarily the diameter you can fully machine. This is especially critical for disc-type parts which are often wide.

How Does the Max Turning Diameter Impact Your Machining Capability?

Confusing max swing with max turning diameter is a common pitfall. This can lead to buying a lathe that can hold your part, but can’t actually machine its full required diameter. Let’s clarify this critical difference for actual operations.

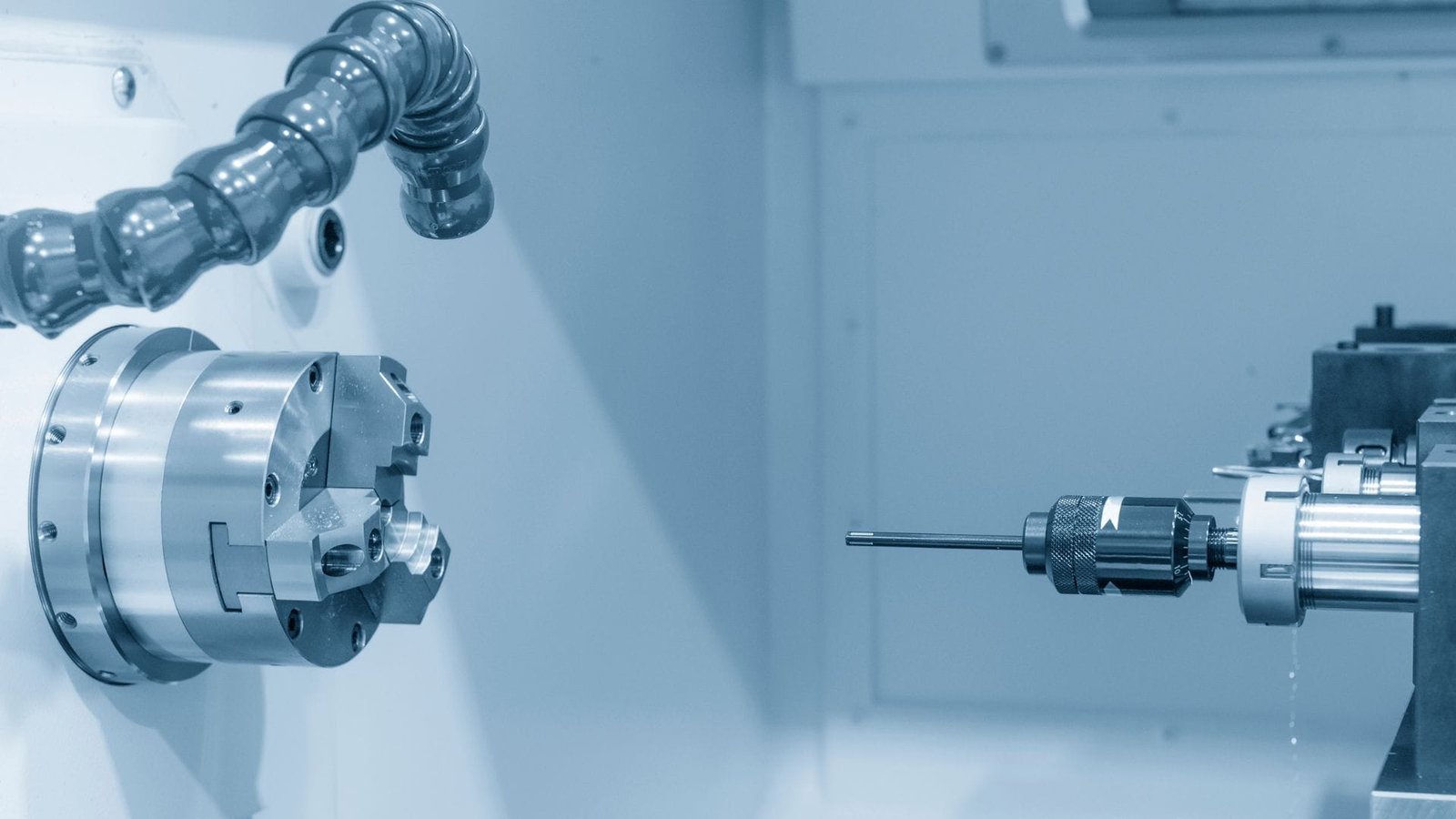

The maximum turning diameter is the maximum workpiece diameter that the CNC lathe can actually machine with its cutting tools. It’s usually smaller than the max swing diameter because you have to consider interference from the tool holder, turret, and guide rails.

This is where the real work happens. The maximum turning diameter², often called the "maximum machinable diameter," defines the practical limit for your cutting operations. While the max swing tells you if the part fits on the machine, the max turning diameter tells you how much of that part you can actually cut.
This diameter is constrained by the X-axis travel range of the tool post or turret and any potential interference with machine components when the tool is engaged. For example, if I want to machine a shaft with an outer diameter of Φ400mm, but the lathe’s maximum turning diameter is only Φ350mm, then even if the swing allows the Φ400mm part to be mounted, I can’t machine its outer surface completely. This directly affects the range of parts you can produce.
For machining large-diameter thin parts³, like big flanges, a lathe with a larger turning diameter is essential. If you try to machine workpieces close to the machine’s maximum turning diameter, you might find that rigidity decreases, which can affect accuracy and force you to use slower feed rates, thus reducing efficiency. A smaller turning diameter, on the other hand, might be perfectly suitable and more cost-effective for predominantly slender shaft workpieces.

Here’s a quick comparison:

Feature	Max Swing Diameter	Max Turning Diameter (Actual Machinable)
Definition	Max diameter that can rotate without hitting bed/cross-slide.	Max diameter the cutting tool can actually reach and machine effectively.
Constraint	Physical clearance from spindle centerline to machine bed or cross-slide.	Tool holder size, turret design, and effective X-axis travel of the tool.
Primary Relevance	Overall workpiece fit, especially for irregular shapes or initial raw material.	Actual machining operations, determining the largest finished OD.
Is it always machinable?	No, this is just about physical clearance for rotation.	Yes, this is the practical limit for external turning operations.

Is the Max Turning Length Sufficient for Your Workpiece Requirements?

Having a lathe with too short a bed for your long parts is a recipe for frustration and inefficiency. It can mean multiple complex setups, an increased chance of error, or simply being unable to do the job at all.

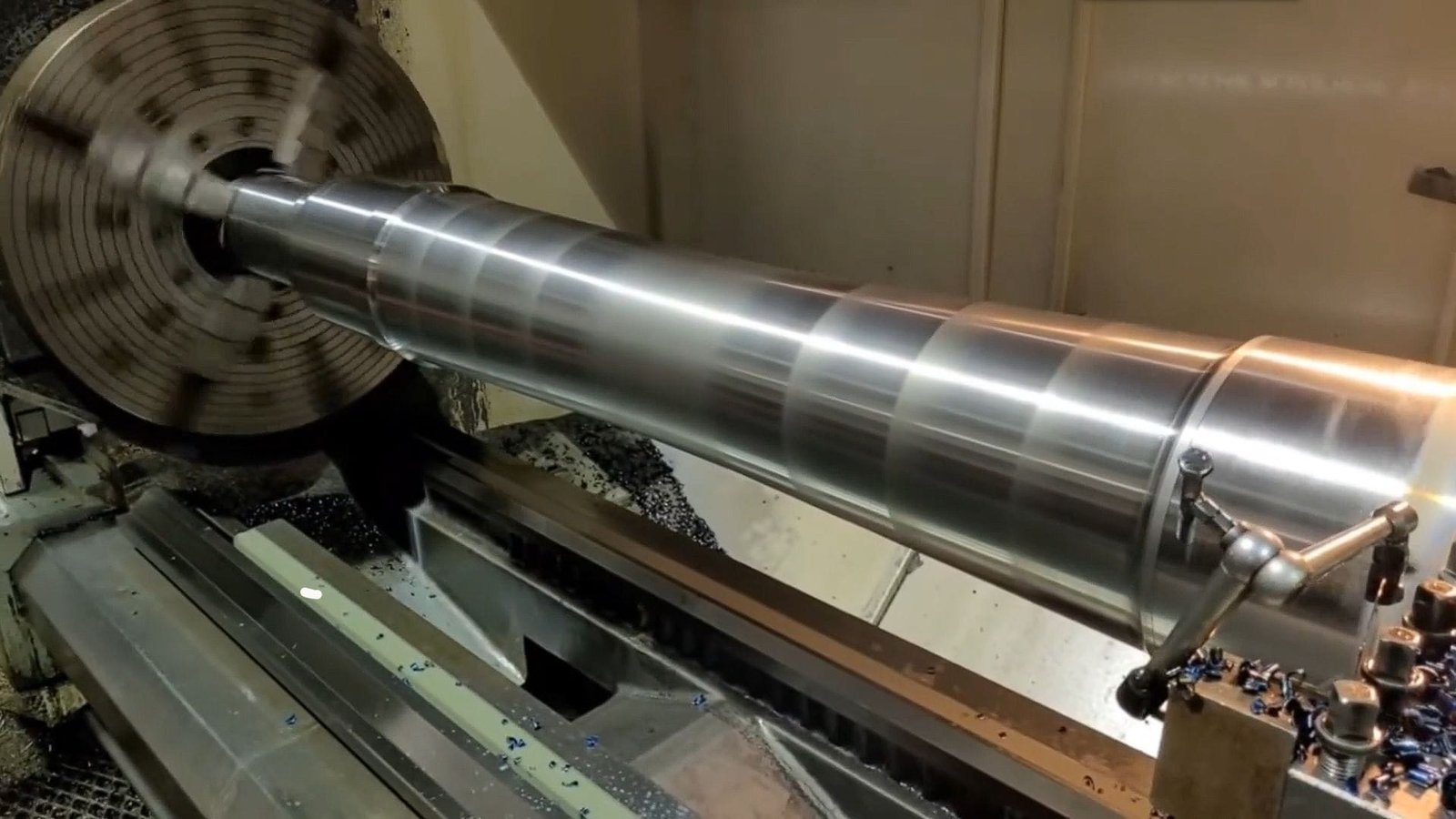

The maximum turning length refers to the maximum workpiece length that the CNC lathe can machine along its Z-axis (the spindle axis) in one single clamping. This is limited by factors such as the bed length, the tailstock position, and the tool post’s travel.

The maximum turning length is usually defined as the distance between centers (if a tailstock⁴ is used) or the maximum travel of the cutting tool along the Z-axis.
If your workpiece length exceeds the lathe’s maximum turning length, you simply can’t machine it in one go, or sometimes, you might not even be able to clamp it properly. For example, a lathe with a maximum turning length of 500mm cannot fully machine a shaft part that is 800mm long in one setup. This might force you to machine it in sections, which increases setup time, machining difficulty, and the potential for inaccuracies, or you’d have to look for a larger, more expensive lathe.
Furthermore, long workpieces almost always require support from a tailstock or even a center rest (steady rest) to prevent vibration, deflection, and "whip" during rotation, especially if they are slender. So, the maximum turning length also heavily influences your clamping strategy⁵ and the need for such accessories. Making sure the maximum turning length is greater than the actual machining length of your typical workpieces is crucial for efficient and complete turning.

What Type of Parts—Discs, Short Shafts, or Slender Shafts—Do You Primarily Machine?

Thinking a "one-size-fits-all" CNC lathe will handle every job perfectly is a common oversight. Different part geometries, materials, precision needs, and production volumes place very different demands on a machine.

The general geometry (discs, short shafts, slender shafts), material, required precision, and production volume of your parts heavily influence the ideal lathe specifications for diameter, length, power, rigidity, automation, and necessary accessories.

Disc-Shaped Workpieces

Think of parts like flanges, large gear blanks, or end caps. Their key features are a relatively large diameter compared to their short length.

• Impact on Lathe Selection: For these, you’ll prioritize a lathe with a generous maximum turning diameter and, of course, max swing. The bed structure needs to be very stable and rigid because these parts can be heavy, and the cutting forces can be substantial over a large face. The spindle power should be moderate to high, as the cutting area is large, especially during facing. If these discs are made of tough materials, higher spindle power and torque become even more critical. Precision requirements for flatness or parallelism might necessitate a machine with high-quality guideways and construction.

Short Shaft Workpieces

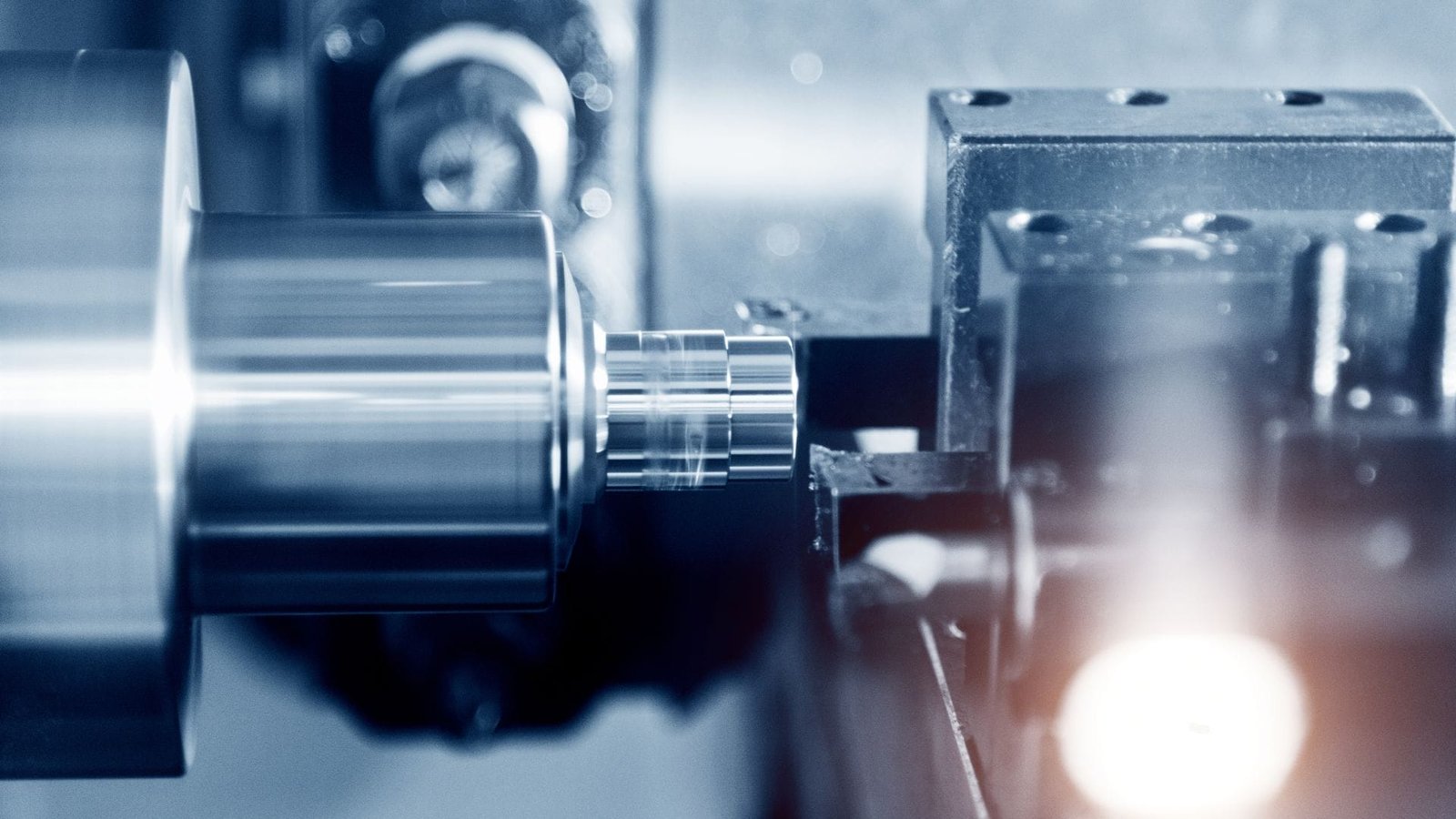

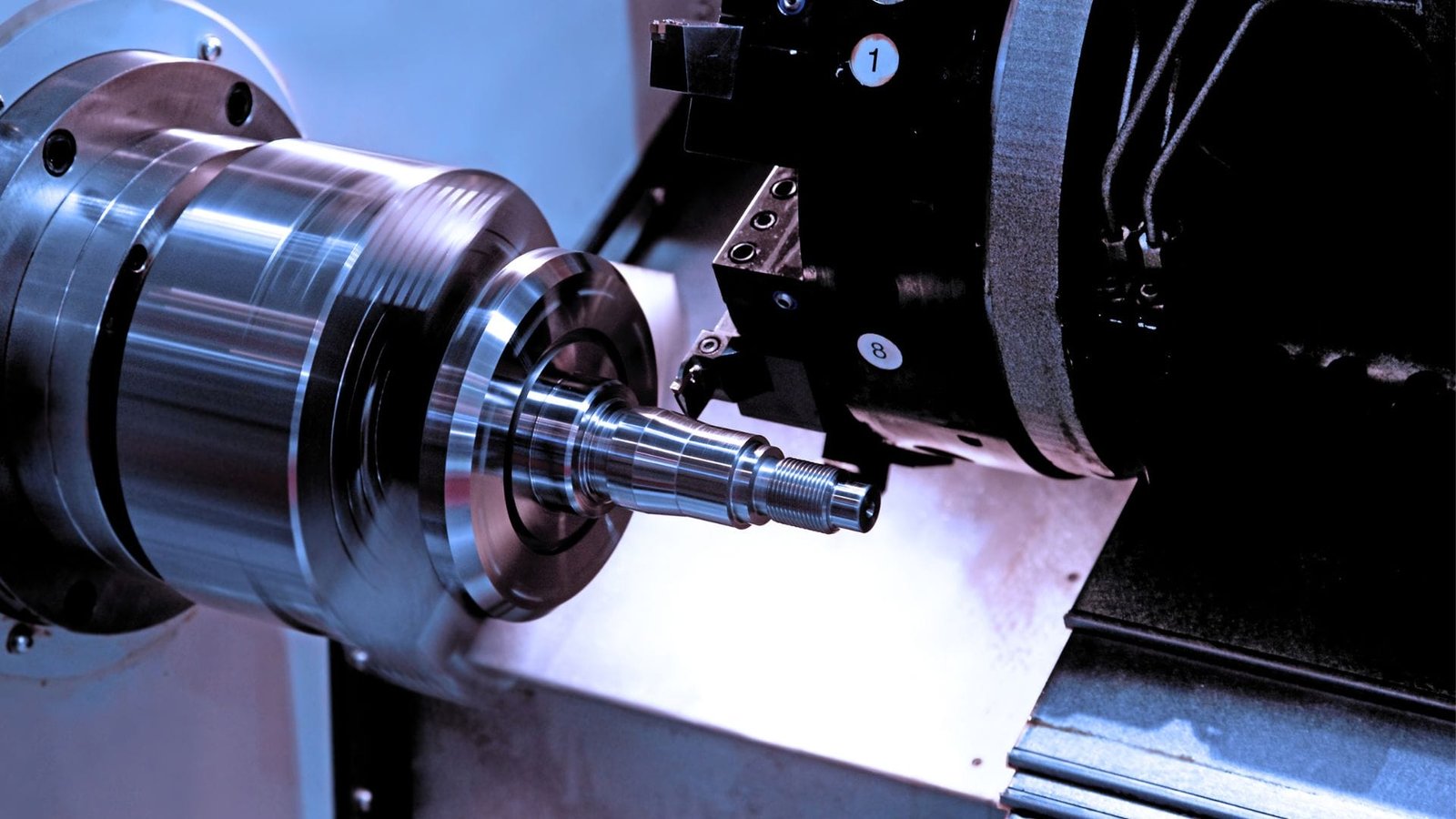

These include parts like many gear shafts, smaller motor shafts, or some camshafts. They generally have a more balanced ratio of diameter to length and can be quite compact, often with multiple features requiring high precision.

• Impact on Lathe Selection: Here, you need a good balance between maximum turning diameter and maximum turning length. A flexible tailstock configuration is often beneficial for support. If these parts have tight tolerances, the lathe must have high precision capabilities⁶, possibly including features like high-resolution encoders and thermal compensation. For high production volumes of short shafts, an efficient tool change system (like a fast turret) and automation features like bar feeders or robotic loading become very important for productivity. The spindle power should match the material and depth of cut.

Slender Shaft Workpieces

Examples are leadscrews, long drive shafts, or hydraulic piston rods. These are characterized by a long length relative to a comparatively small diameter, making them prone to deflection and vibration.

• Impact on Lathe Selection: The maximum turning length is paramount; it absolutely must accommodate your longest parts. Machine rigidity and excellent vibration damping capabilities⁷ are critical to combat chatter and maintain accuracy over the entire length. Essential accessories for slender shafts include a robust tailstock and the ability to use center rests (steady rests) or follower rests to support the workpiece mid-span. The material also plays a role; tougher materials will require more careful control of cutting parameters to avoid deflection. Precision for straightness and diameter consistency is often key.

Here’s a table to summarize these considerations:

Part Type	Key Workpiece Features	CNC Lathe Selection Focus
Disc-shaped	Large diameter, short length, often heavy	High Max Turning Diameter & Swing, Very Stable & Rigid Bed Structure, Adequate Spindle Power for large cutting areas.
Short Shafts	Medium length & diameter, often complex features	Balanced Max Turning Diameter & Length, Flexible Tailstock, Efficient Tool Change System (e.g., fast turret, live tooling).
Slender Shafts	Long length, small diameter, prone to vibration/bending	Sufficient Max Turning Length, Excellent Machine Rigidity & Vibration Dampening, Essential Tailstock & Center/Follower Rests.

Understanding these distinctions will help you choose a CNC lathe that’s not just a machine, but a solution tailored to the work you do most.

Conclusion

Selecting the right CNC lathe means carefully matching its features—max swing, turning diameter, length, power, rigidity, precision, and automation—to the specific characteristics and production demands of your most common workpieces for optimal results.

---
