Why is CNC Whirling Machine Used for Almost All Ball Screw Manufacturing?

You manufacture ball screws slowly. Your traditional turning and grinding process takes a long time. You lose orders to faster competitors. You must upgrade your machining method now.

CNC whirling machines replace traditional turning and rough grinding. They machine ball screws five to thirty times faster. This technology uses high-speed multi-edge cutting. It cuts finished gothic-arch threads directly into hardened steel up to 65 HRC. It delivers high precision and significantly lowers your manufacturing costs.

Traditional ball screw manufacturing often faces significant bottlenecks. Relying on older lathes and multi-stage grinding can stretch production cycles to over a month, while the intense heat from grinding often risks compromising the metal’s hardness. To stay competitive, it’s essential to find a more efficient path. CNC whirling technology offers a modern solution to these long-standing challenges. Let’s explore how this process redefines ball screw production.

How Does CNC Whirling Achieve Significantly Higher Production Speeds Than Traditional Threading?

Your traditional lathe cuts threads very slowly. You run dozens of axial passes to reach the final depth. You waste hours on one part. You need a faster method.

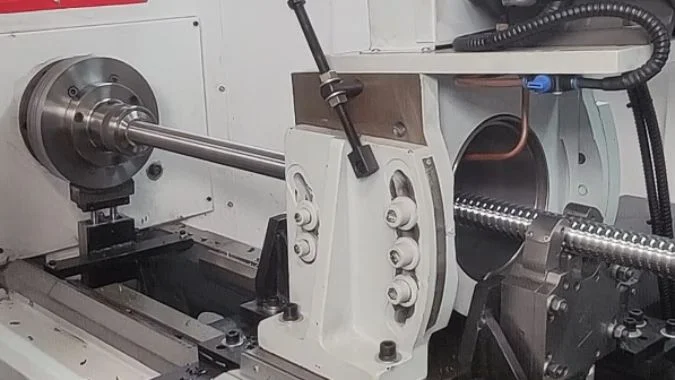

CNC whirling achieves massive speeds using a rotating cutter ring. This ring orbits eccentrically around the slowly rotating workpiece. It tilts to the exact helix angle. Multiple carbide inserts cut tangentially. The machine cuts the full thread profile in one continuous pass from the raw stock.

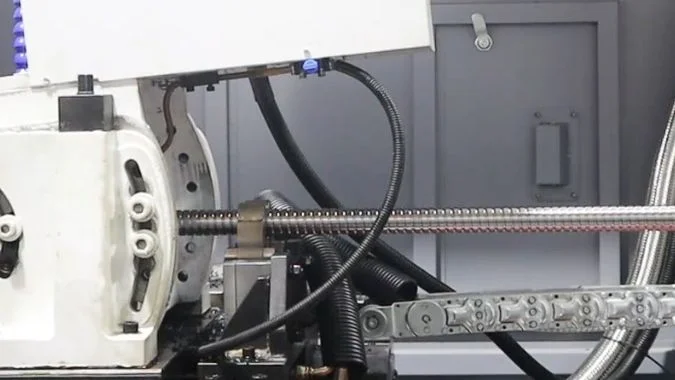

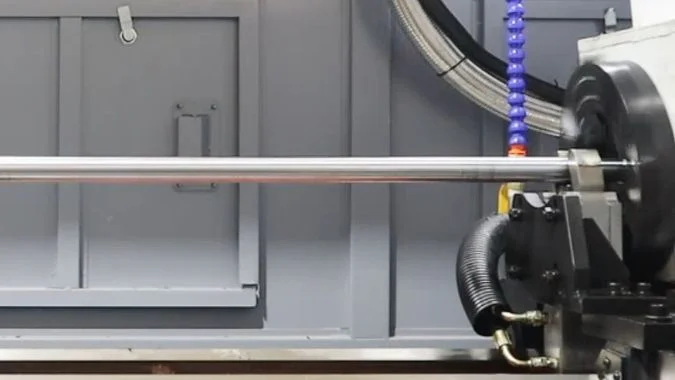

The lathes cut a deep thread using twenty different passes. The tool moves back and forth endlessly. This wastes massive amounts of time. CNC whirling¹ changes the cutting geometry completely. The main cutter ring spins incredibly fast up to 8000 revolutions per minute. The spindle holding the workpiece rotates very slowly. The CNC system controls the axial feed, radial depth, and helix angle simultaneously. The cutter ring holds multiple carbide inserts. These inserts orbit around the slow metal rod. They cut the full depth of the gothic-arch thread² instantly. The tangential cutting action distributes the heavy load across many cutting edges at the same time. The milling cutting speed reaches 400 meters per minute. The machine also uses a highly rigid bed and carbide follower rests. This strong structure stops heavy vibrations. It holds long shafts up to eight meters perfectly straight. You get a finished thread profile in minutes instead of hours.

Production Speed Comparison

Machining Feature	Traditional Thread Turning	CNC Whirling Technology
Cutting passes	Requires dozens of slow passes	Cuts full depth in one pass
Cutting action	Single point axial cutting	Tangential multi-edge cutting
Shaft support	Standard lathe steady rests	Carbide follower rests
Overall efficiency	Very slow cycle time	Five to thirty times faster

Why is the Surface Finish Produced by Thread Whirling Often Comparable to Traditional Threading?

You worry about surface roughness. You think high-speed cutting leaves ugly tool marks on your screws. Your customers reject rough surfaces. You must understand whirling surface quality.

Thread whirling creates a smooth finish because multiple cutting edges enter and exit tangentially. The chip load per tooth stays very low. The intermittent cutting pressure prevents heat buildup. The metal part temperature rises only slightly. This prevents thermal distortion and delivers a clean surface finish.

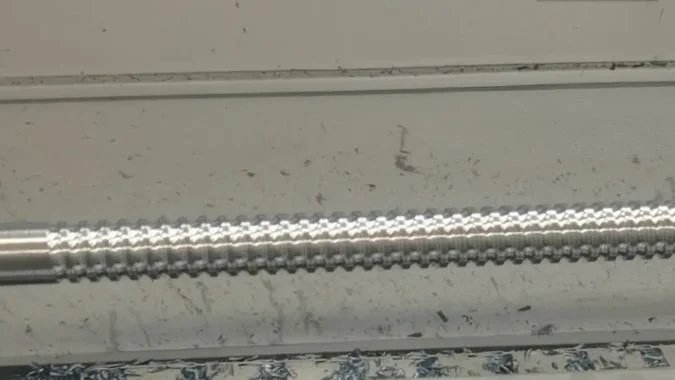

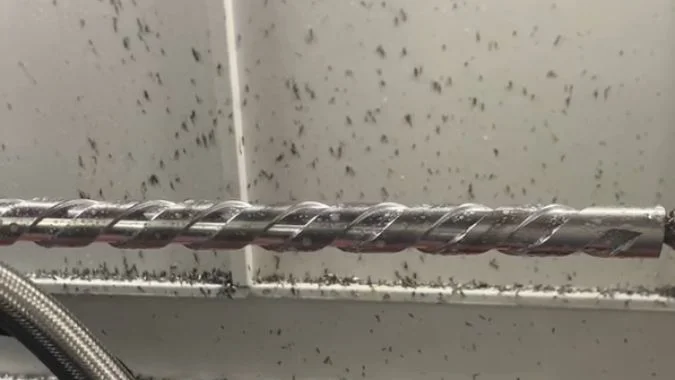

Traditional single-point turning leaves deep valleys and high peaks on the metal. The single tool digs into the metal forcefully. Whirling works completely differently. The cutter ring holds many carbide inserts. These inserts hit the metal one after another extremely fast. The tangential cutter entry removes material smoothly. The high speed removes tiny comma-shaped chips of metal very cleanly. These comma-shaped chips carry the cutting heat away efficiently. The workpiece temperature only rises a few degrees above the room temperature. The multi-edge cutting path overlaps perfectly. This overlap flattens the peaks and valleys on the metal surface. The surface roughness drops to Ra 0.8 microns³ reliably. The machine design also plays a huge role. The main lathe spindle turns very slowly. The system creates almost zero vibration. This dynamic stability prevents chatter marks on the thread surface. The whirling⁴ process also uses compressed air to blow the hot chips away. This dry cutting method stops chips from scratching the newly cut smooth surface.

Surface Finish Factors

Process Element	Single Point Turning Effect	Thread Whirling Effect
Cutting tool	One edge digs deeply	Multiple edges cut smoothly
Heat control	Metal absorbs cutting heat	Comma chips carry heat away
Tool pressure	Constant heavy pressure	Intermittent light pressure
Chip removal	Coolant traps chips inside	Compressed air blasts chips

Can CNC Whirling Do Better Surface Finish Than Traditional Threading?

You grind threads to get a perfect finish. Grinding heat damages your metal hardness. You create dangerous micro-cracks in your parts. You need a safer way to finish threads.

CNC whirling beats rough turning and rivals expensive grinding safely. Whirling achieves Ra 0.8 microns without causing thermal damage. It eliminates the white-layer formation common in grinding. The whirling cuts create a surface microstructure that holds lubricant better. This extends the service life of the ball screw.

The grinding wheel creates massive friction and heat. This heat causes raceway annealing. The hard steel becomes soft again. Tiny micro-cracks form on the thread surface. We call this heat damage the white-layer formation⁵. CNC whirling solves this exact problem perfectly. We call this process milling instead of grinding. Standard rough turning gives you a rough Ra 3.2 finish. You must grind it later. Whirling gives you an Ra 0.8 finish immediately in one step. Good finish grinding can reach Ra 0.2 microns, but it costs too much time and money. Whirling offers a unique mechanical advantage over grinding. The intermittent whirling cuts leave a specific microstructure on the metal surface. This microstructure provides superior lubricant retention volume. The oil stays inside the thread better. This reduces friction massively. The whirling inserts also strike the metal with high impact. This impact causes a cold working hardening effect. You produce a stronger ball screw with zero heat damage.

Finish Quality Comparison

Machining Method	Typical Surface Finish Ra	Surface Condition Effect
Standard turning	Ra 3.2 to 6.3 microns	Rough surface needs grinding
Precision grinding	Ra 0.2 to 0.8 microns	High heat causes white layer
CNC Whirling	Ra 0.4 to 1.6 microns	Cold working hardens surface
Grinding vs Whirling	Micro-cracks occur often	Retains lubricant perfectly

What are the Economic Benefits of Using CNC Whirling Technology in High-Volume Ball Screw Manufacturing?

You lose money on high production costs. Your current ball screw manufacturing takes fifty days. You scrap too many expensive parts. You must lower your costs drastically now.

CNC whirling slashes the manufacturing cycle from fifty days to three days. It eliminates the slow rough grinding stage and complex lead-pickup operations. This machine removes toxic grinding swarf disposal costs. You save money, use resharpenable inserts, and cut your scrap rate near zero.

Traditional ball screw making eats massive profits. A factory cuts the raw metal on a lathe first. Then they heat treat it to make it hard. Then they grind it slowly. This takes twenty separate steps. It requires complex lead-pickup operations to align the thread again after heat treatment. This cycle traps money in the factory for a month. A CNC whirling machine fixes this cash flow problem immediately. A whirling machine cuts hard metal directly after heat treatment. This is dry cutting⁶. It removes the entire rough grinding step. One machine replaces multiple grinding setups completely. The machine only needs compressed air to blow chips away. You stop buying expensive dirty cutting fluids. You eliminate the toxic grinding swarf disposal costs. Your factory stays clean. You can also use resharpenable inserts to save tooling money. The CNC system uses dynamic compensation to stop the long screw from bending. You do not ruin parts. Your scrap rate drops below zero point three percent.

Cost Reduction Breakdown

Economic Factor	Traditional Manufacturing	CNC Whirling Technology
Production cycle	Takes thirty to fifty days	Finishes in one to three days
Production steps	Over twenty separate steps	Rough and finish in one setup
Waste management	Toxic grinding swarf disposal	Clean dry metal chips
Machine footprint	Needs multiple grinding setups	One machine finishes everything

Conclusion

You must switch to a CNC whirling machine for ball screw manufacturing. It cuts production time, creates excellent surfaces, eliminates dangerous grinding heat, and maximizes your factory profits completely.

---
