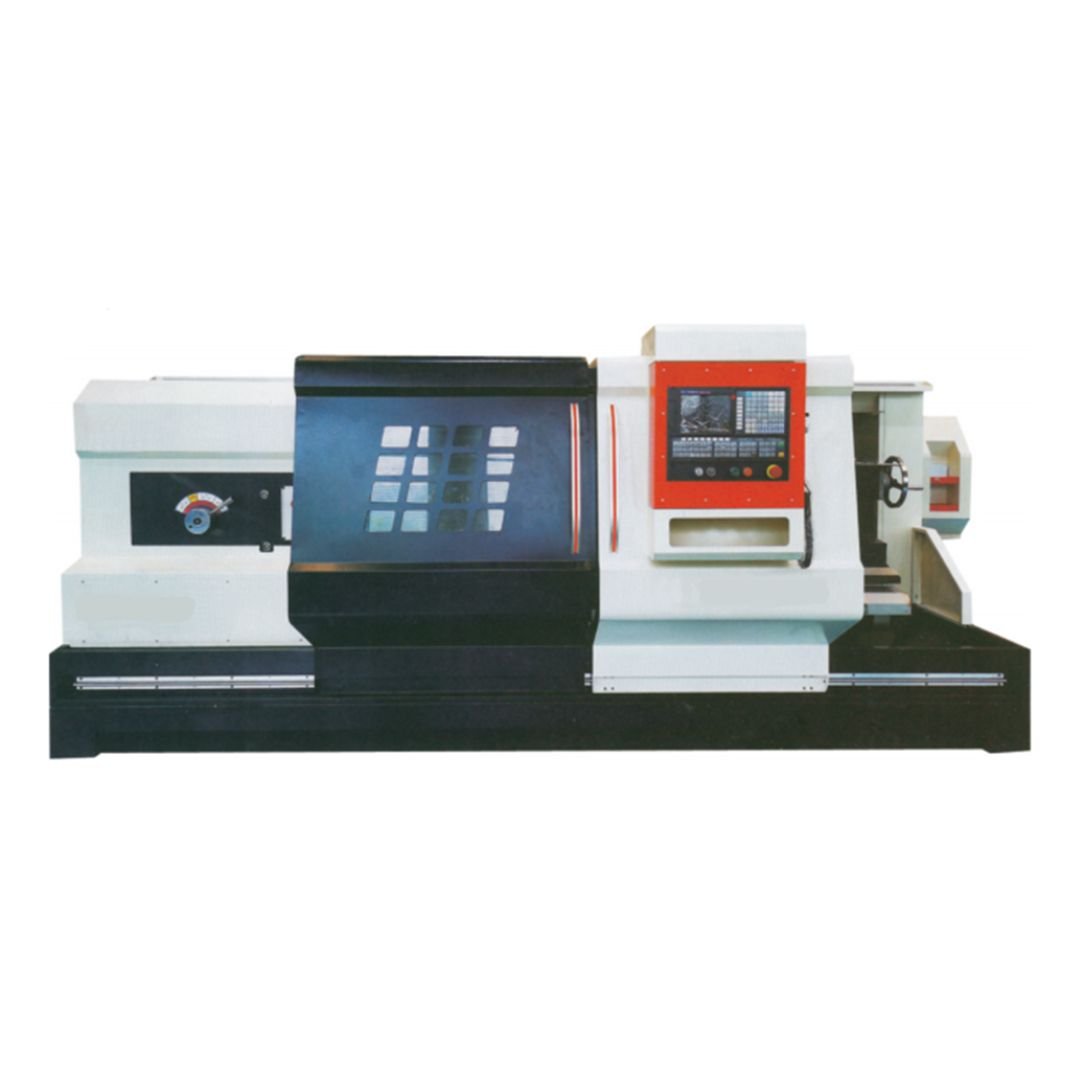

Segmented Variable Speed CNC Lathe CKNC-6163/CKNC-6180/CKNC-61100
CNC Lathe
The bed body and bed foot adopt resin sand casting aging treatment, and the guide rail adopts ultra-audio quenching.
The main sliding surface adopts plasticized process to eliminate crawling and improve precision retention.
X,Z screws adopt three support structure.
其他信息
| Max Swing Over Bed | 1000 mm, 630 mm, 800 mm |
|---|---|
| Taper | metric system （1:20） |
| Spindle Max Speed | 40-125 ; 110-350 ; 290-950r/m |
| Motor Power | 11 kw |
| Spindle Bore | Ø105 mm |
Product Details
| Model No. | CKNC-6163 | CKNC-6180 | CKNC-61100 |
|---|---|---|---|
| Specifications | |||
| Max.Swing over bed | 630 mm | 800 mm | 1000 mm |
| Max slewing through the skid plate | 350 mm | 480 mm | 680 mm |
| Max. travel X-axis | 400 mm | 470 mm | 470 mm |
| Max. travel Z-axis | 1120/1620/2120/3120mm | 1120/1620/2120/3120mm | 1620/2120/3120mm |
| Width of bed guideway | 550mm | 600mm | 600mm |
| Maximum distance between centers | 1000/1500/2000/3000mm | 1000/1500/2000/3000mm | 1000/1500/2000/3000mm |
| SPINDLE | |||
| Spindle head model | A2-11 C-11 | A2-11 C-11 | A2-11 C-11 |
| Spindle bore taper | metric system （1:20） | metric system （1:20） | metric system （1:20） |
| Spindle bore | Ø105mm | Ø105mm | Ø105mm |
| Spindle speeds | 40-125;110-350;290-950r/m | 40-125;110-350;290-950r/m | 40-125;110-350;290-950r/m |
| Spindle motor power | 11kw | 11kw | 11kw |
| Manual Collet Size | Ø320mm | Ø320mm | Ø320mm |
| Servo axis | |||
| x-axis screws | 3206 | 3210 | 3210 |
| z-axis screws | 5010 | 6310 | 6310 |
| TAILSTOCK | |||
| Tailstock sleeve diameter | Ø 100mm | Ø 120mm | Ø 120mm |
| Tailstock sleeve diameter | 150mm | 250mm | 250mm |
| Tailstock center taper hole | MT5# | MT6# | MT6# |
| General specifications | |||
| Power supply specifications | three-phase 380V 50Hz | three-phase 380V 50Hz | three-phase 380V 50Hz |
| Outline Dimension | 3650x2050x1850mm | 3900x2600x1850mm | 3900x2600x2000mm |
| 4150x2050x1850mm | 4400x2600x1850mm | 4400x2600x2000mm | |
| 5200x2050x1850mm | 5400x2600x1850mm | 5400x2600x2000mm | |
| Net Weight | 4800kg 5100kg 6100kg | 5600kg 6600kg 7850kg | 5600kg 6600kg 7850kg |
| Standard Accessories | Optional Accessories |
|---|---|
| YJS-988TDi control system | CNC system:GSK, Syntec, KND, FANUC |
| Alpha 11KW same service motor | Alpha 11KW servo main motor |
| 11kw common main motor | |
| 320 manual three-jaw chuck | |
| Manual tailstock | |
| Four-station electric tool holder | |
| Automatic lubricating oil pump electric | |
| Electric cooling system | |
| Lighting system | |
| Semi-closed protective cover | |
| Delixi zhengtai electrical control | |
| A full set of technical data | |
| Random standard accessories and tools |
